Thermoform, Fill Seal (150ml-300ml ) CUP FILLING LINE

This line was designed to produce 125ml cups of filled water from a pet FILM sheet and aluminium or plastic seal sheet.

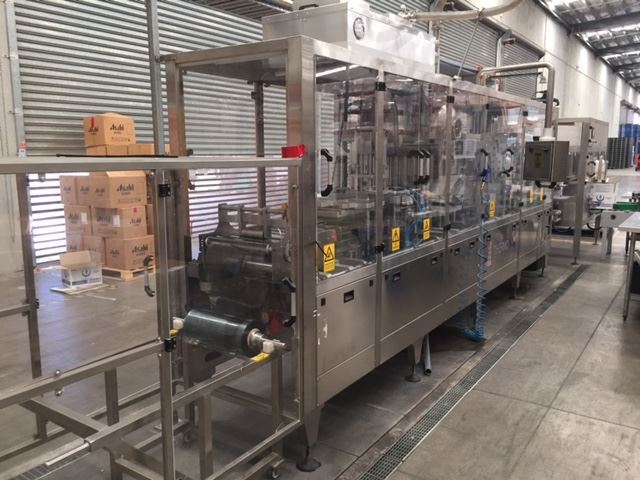

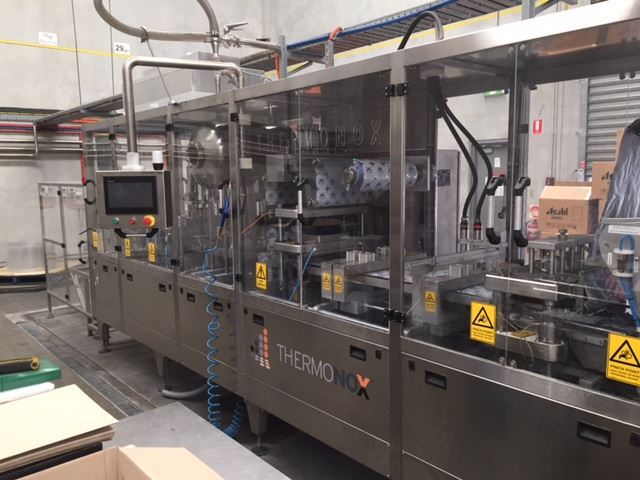

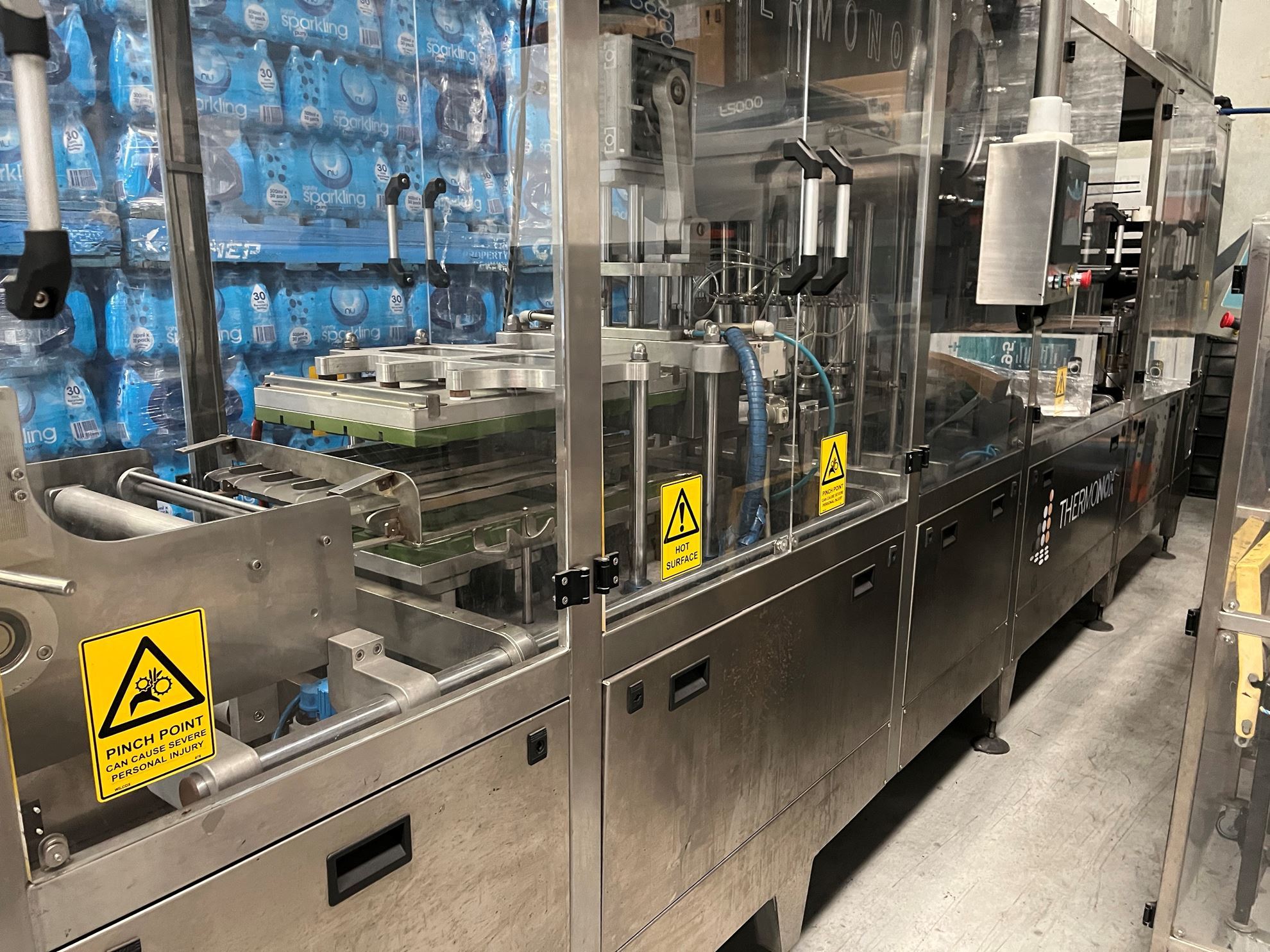

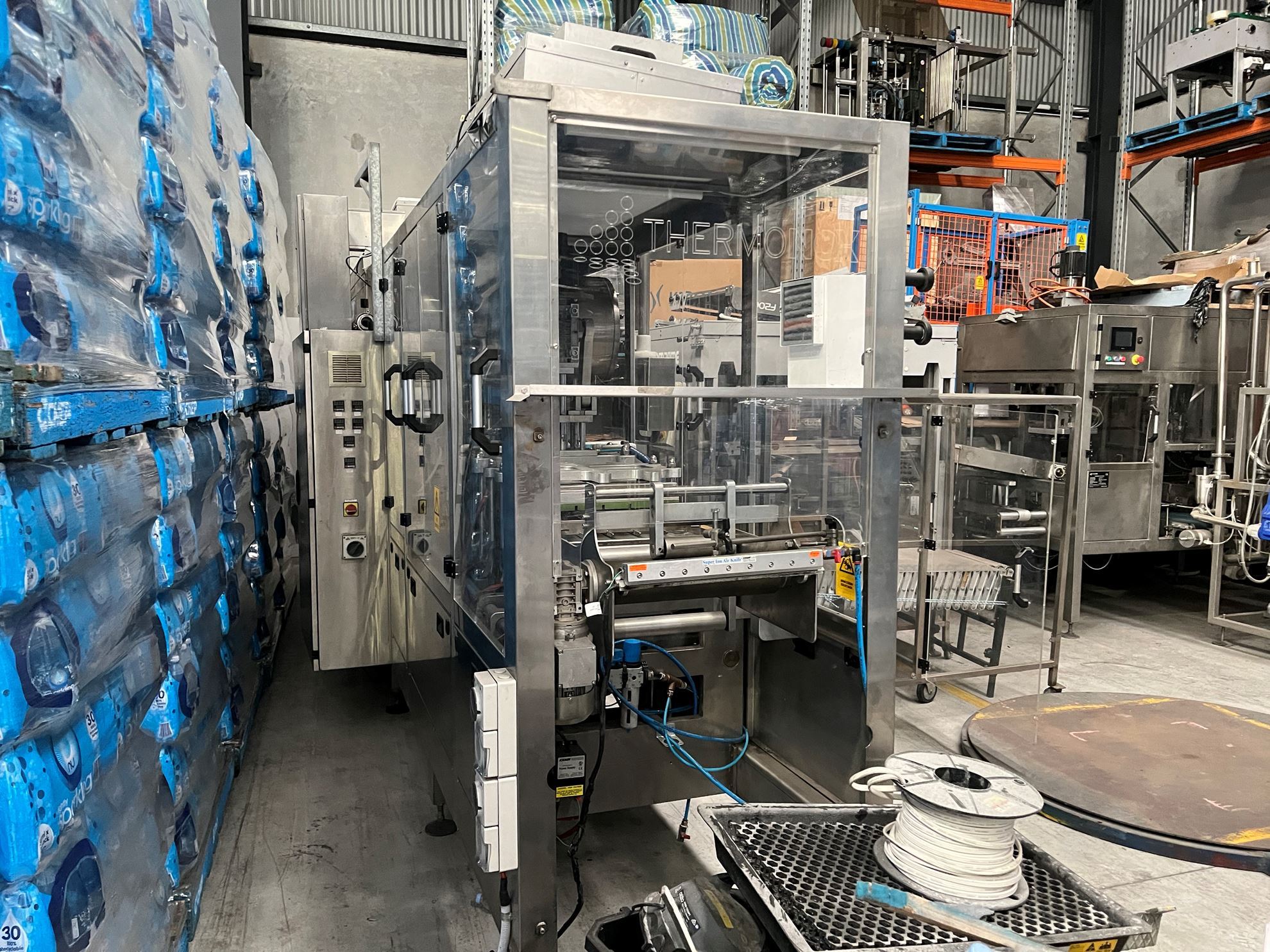

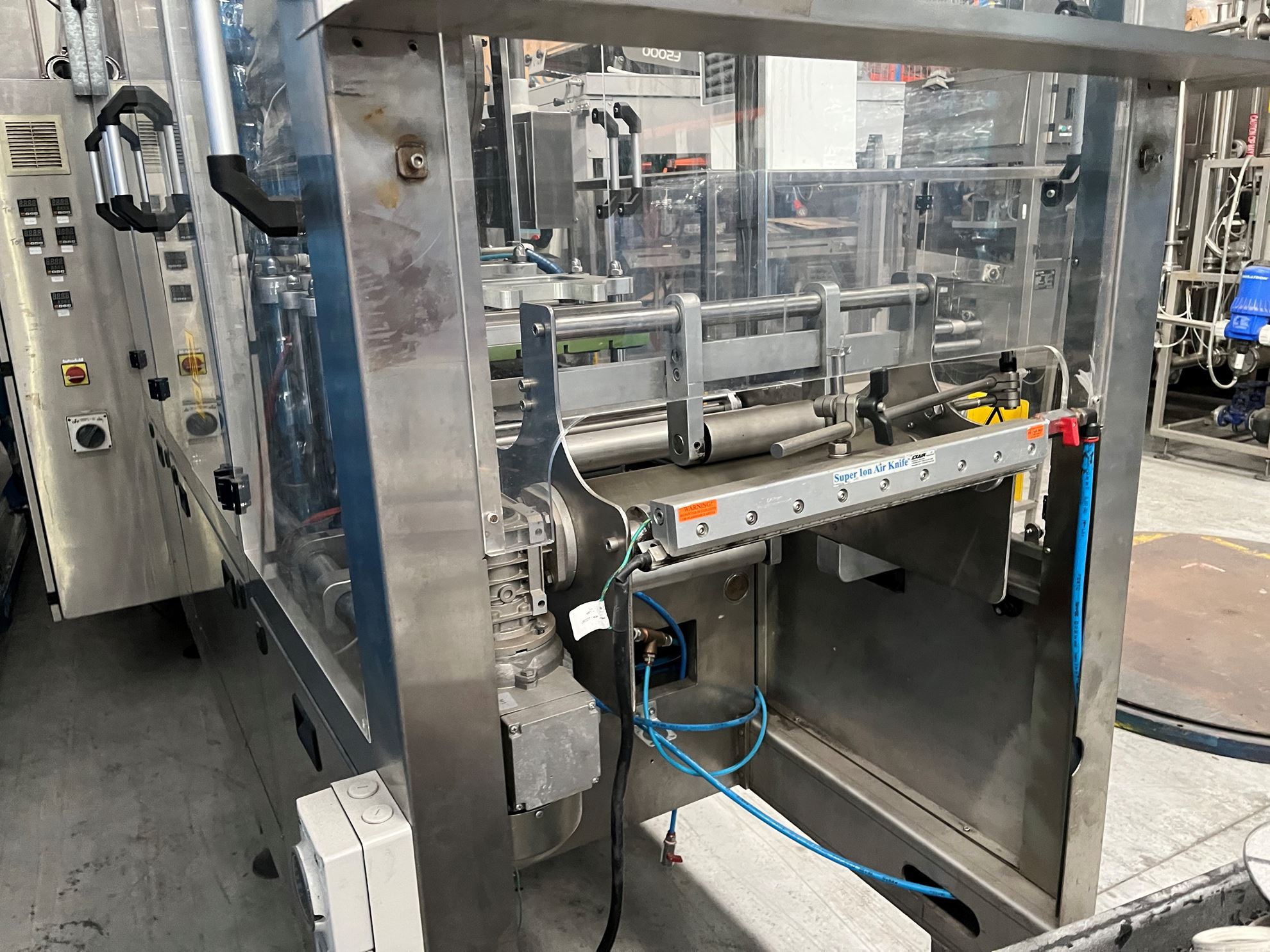

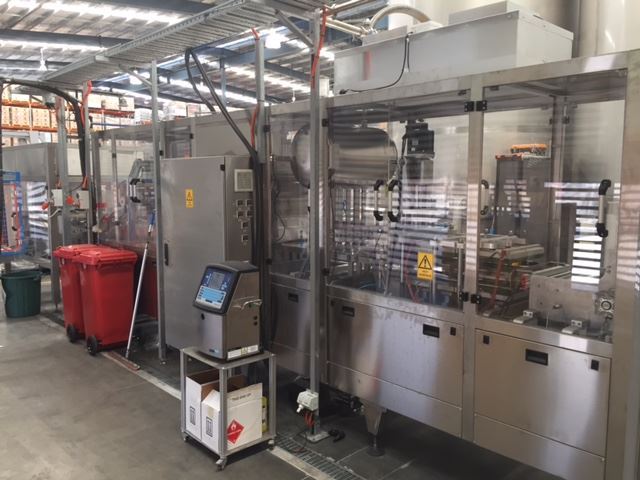

Cup Form fill seal Machine (10moulds 5 stations)

Machine dimensions
A. Machine length. 7000mm

B. Machine width. 1000mm

C. Machine height. 1900mm

Cups size is 75mm x 75mm x 43mm depth

• 12000 cups/hour capacity
• Produces Cups from film sheet.
• Produces Seal from aluminium film.
• Completely closed design
• Plexiglass windows
• Touchscreen operated user friendly.

• Order of operation
• 2 station heating unit for film
• 10 compartment mould for forming the cup
• Cup sealing unit with aluminium seal
• Servo motor driven 4 point Pulling station
• Cutting station

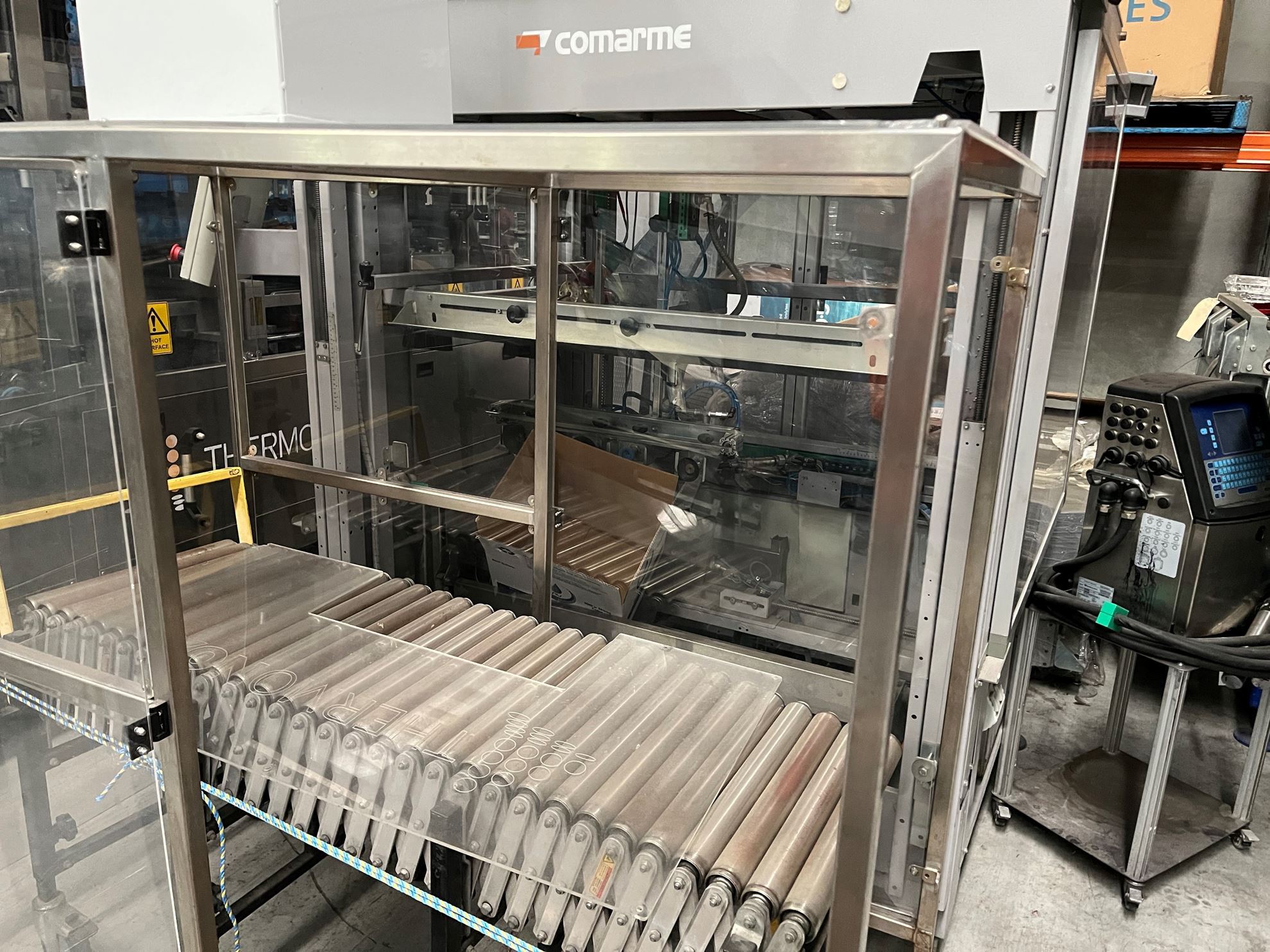

• Exit Conveyor
• The machine body is of Stainless-Steel material.

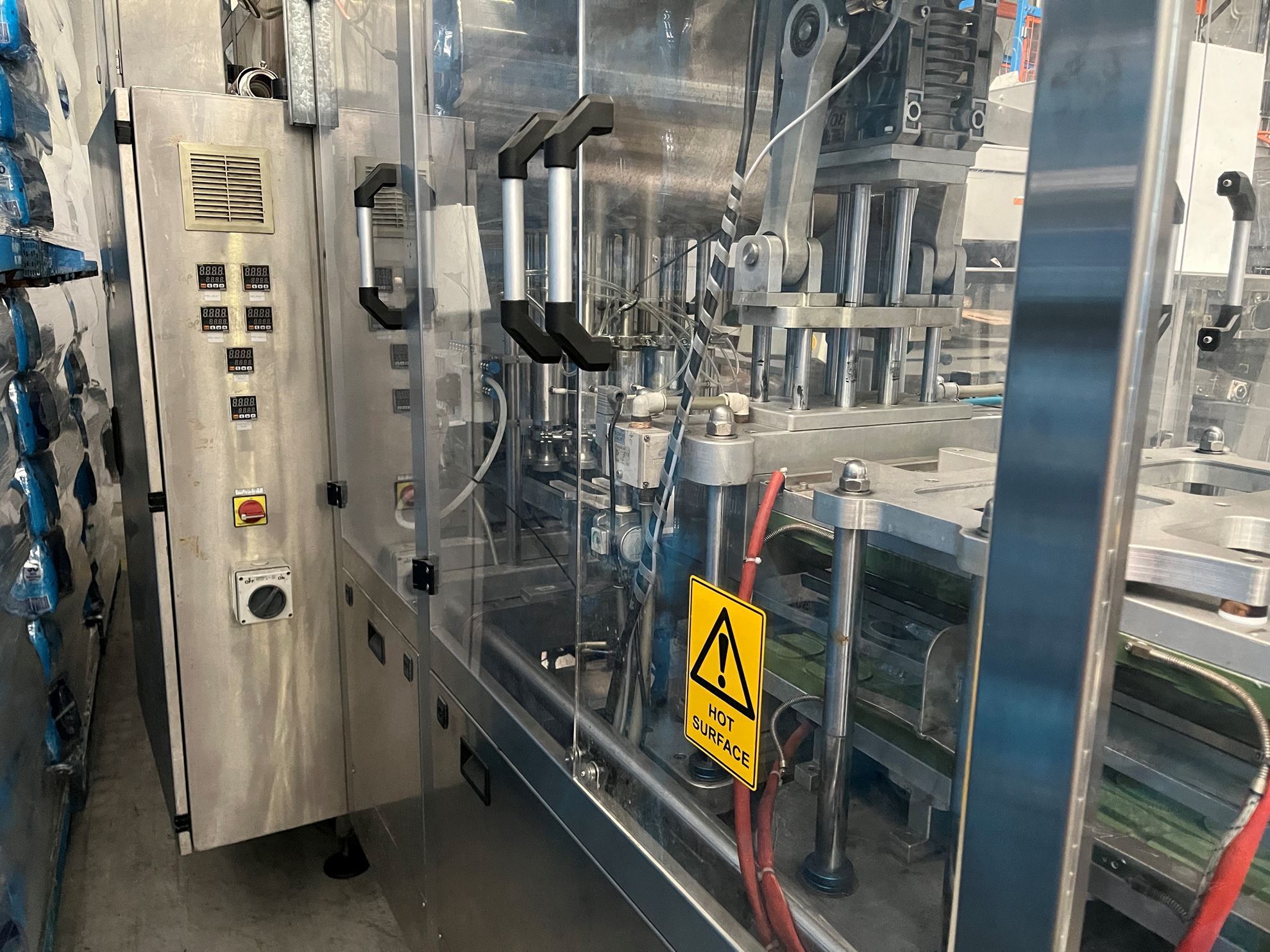

• PLC system DELTA and 10.1” COLOUR TOUCHSCREEN .
• Stainless steel air stock tanks on the machine.
• Filling tank is made of Stainless steel and has a sight glass.
• Filling tank is cylindrical for hygienic purposes.
• The machine is driven with servo drive.
• Water Feeding of the machine is made with automatic valve with level control system in the machine.

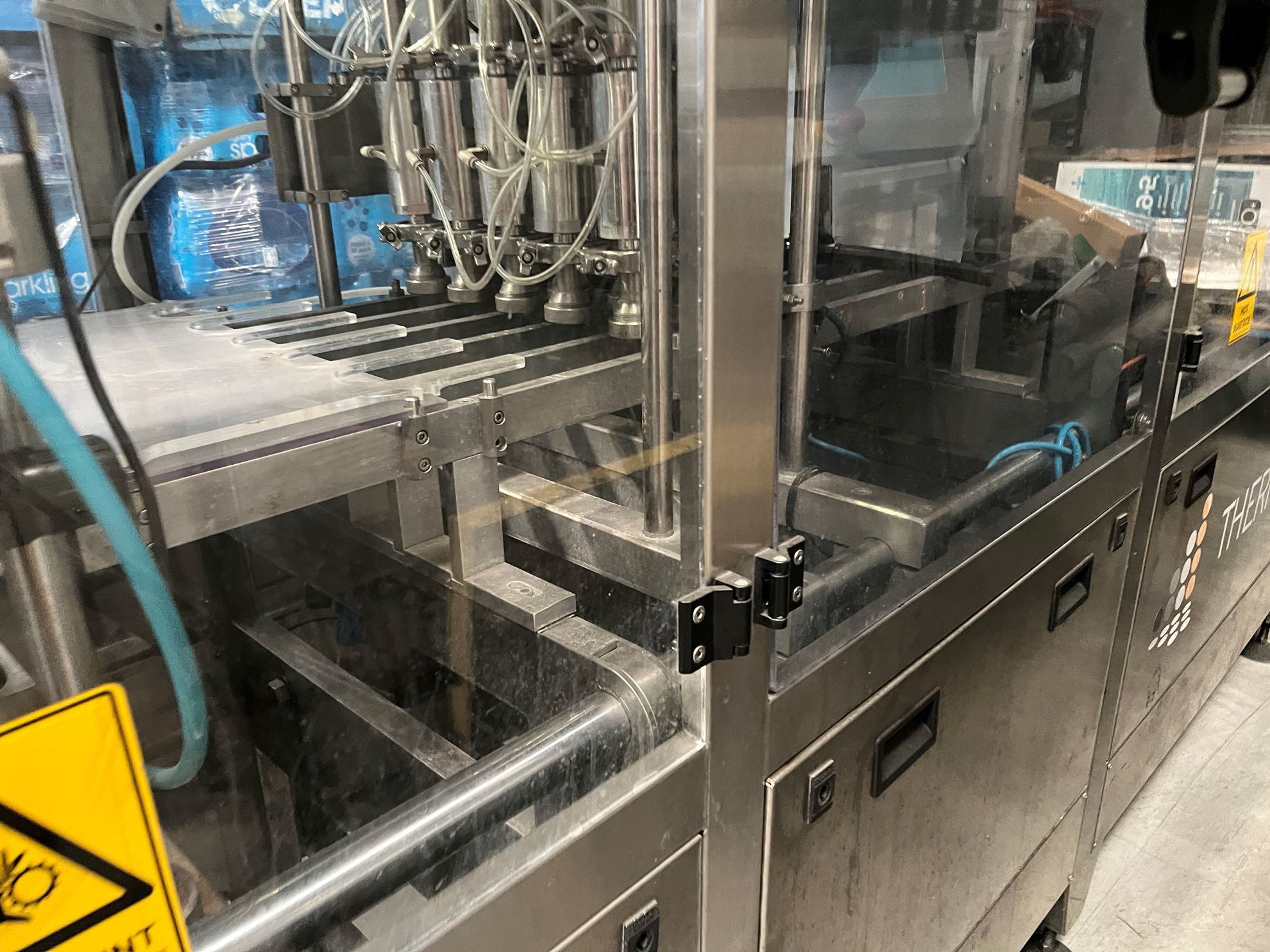

1. The filling is made via 316 l stainless steel filling valves which are designed according to hygiene rules.

2. All the sealing are suitable for Ozonated water.
3. Pneumatics are Festo and/or SMC.
4. The forming system has servo motor.
5. The sealing system is equipped with servo motor.

Exit Conveyor

• • Conveyor is made of flat textile belt with stainless steel body.
  • SITI or MOTIVE drives.
  • Height 800mm.

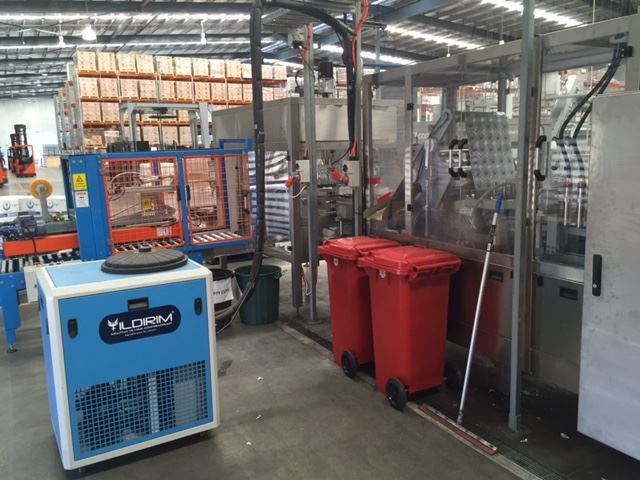

WATER ROBOT and BOX Packaging Strapping Machines (box erecting)

The machine consists of three main sections;

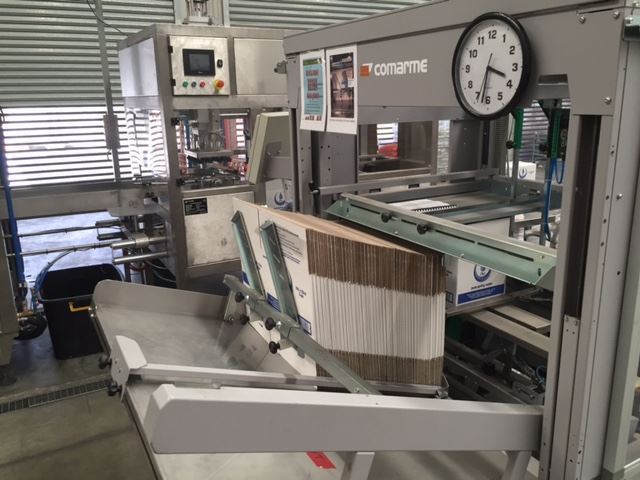

The first section cardboard carton box machine is part of preparing. Automatically

makes folding. Performs the operation of the lower lids closing and bonding. In this way, the boxes are ready in front of the robot for filling

In the second part of our system robot with suction cups system runs as smoothly to

place the cups into cartons.
The third and final section is bonding upper lids off the boxes

boxes ready for shipment

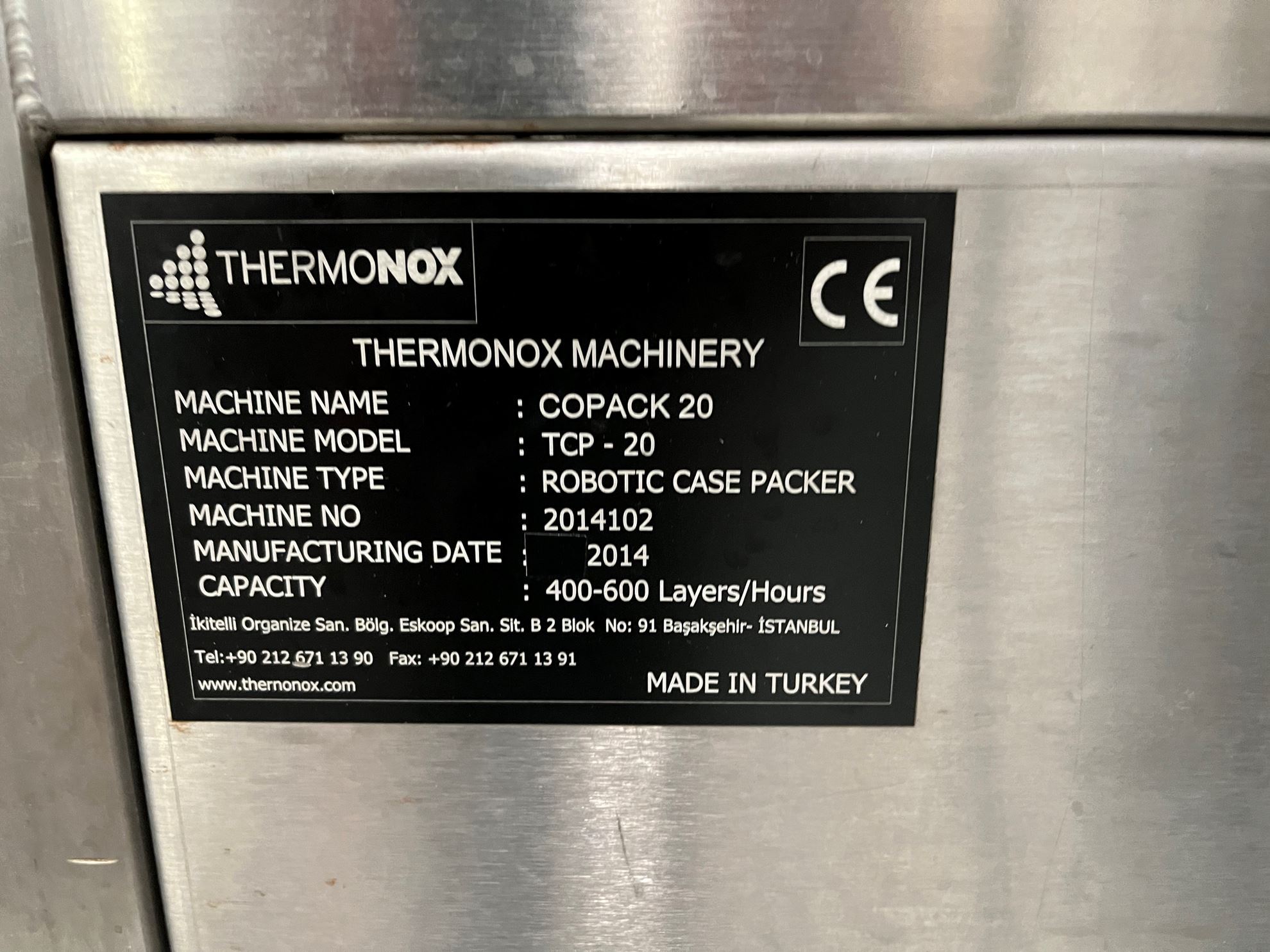

CUP Water packing robot (box loading)

* PLC panels, servo drives and DELTA Festo or SMC Pneumatic section

* Vacuum unit and suction cups or piab Schmalz * Body Stainless Steel

and makes the

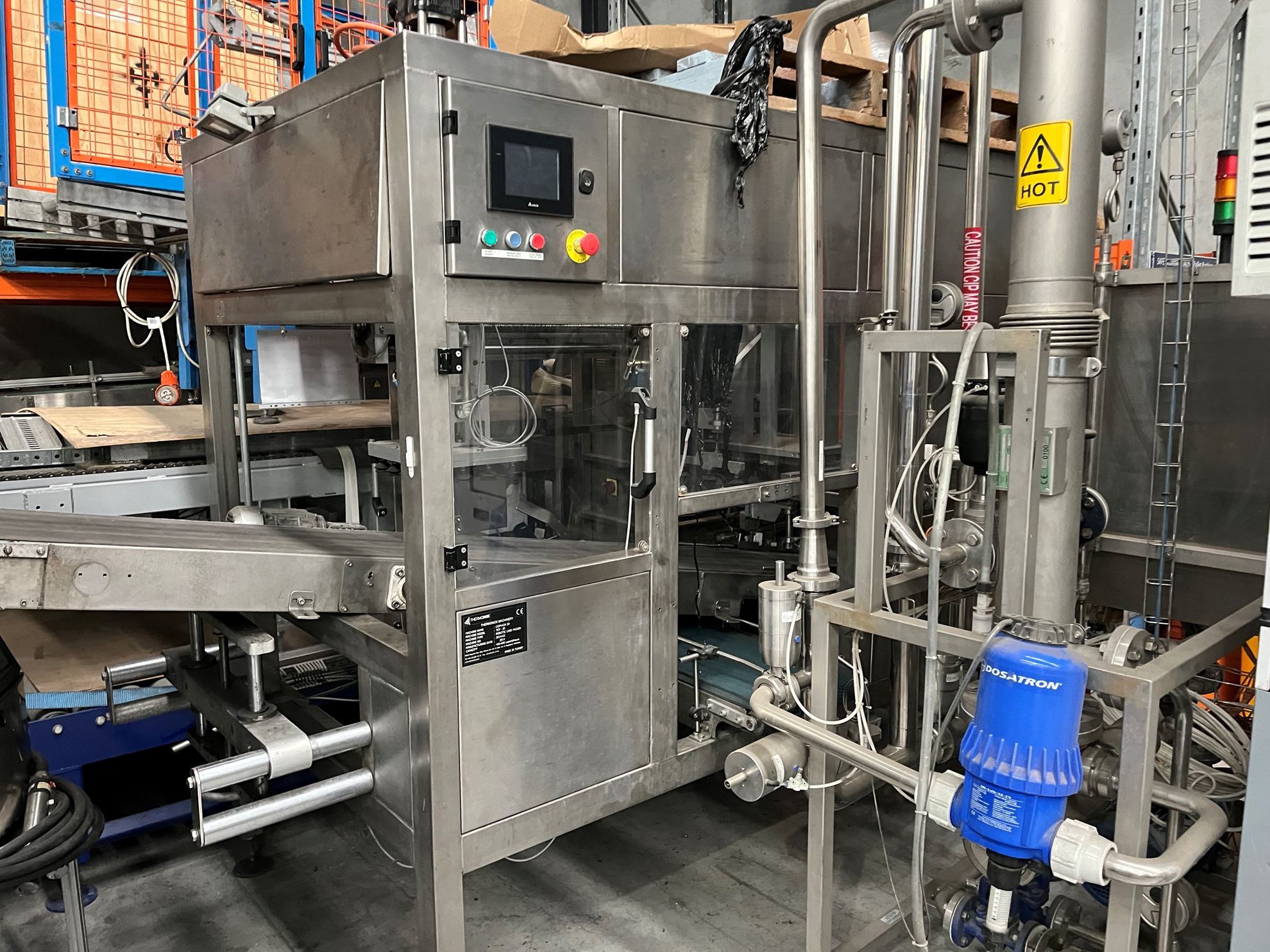

Full Automatic Carton Preparation (making) Sub-banding Machine

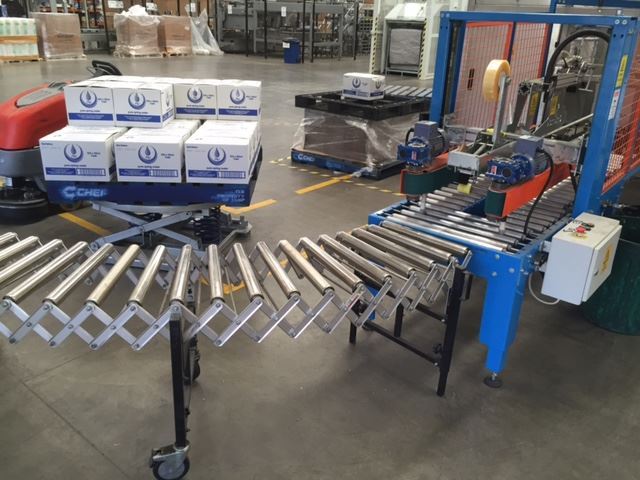

Full Automatic Carton Strapping (air – piston) Upper Strapping Machine
