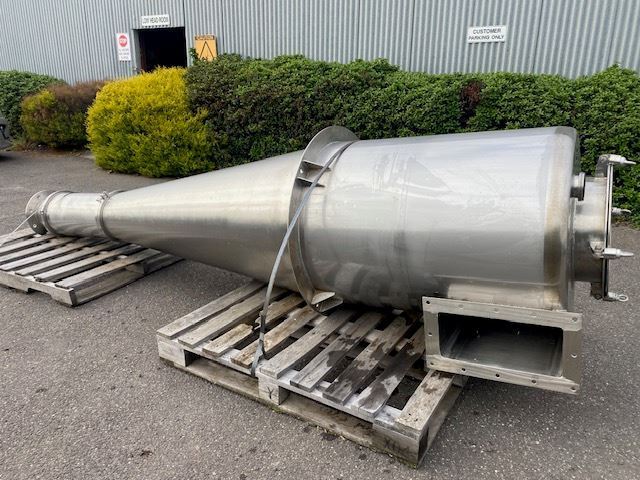

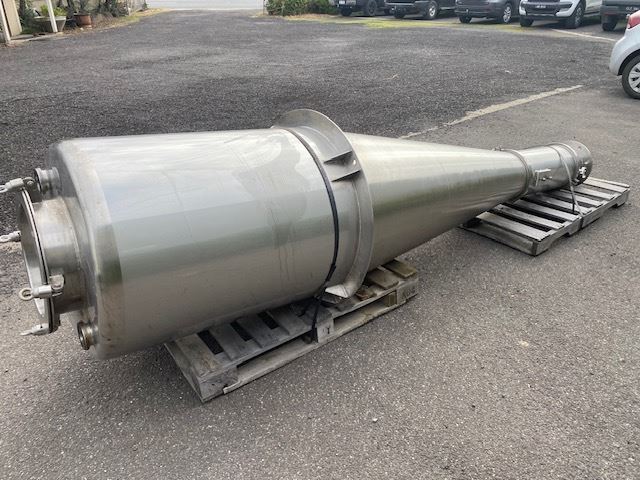

Heavy Duty Stainless Steel Cyclone 304 SS, un-used.
Approx capacity 30m3/hr (requires fan)
Total height 3500mm
Diameter at widest point 750mm
Dirty air inlet 400mm x 180mm

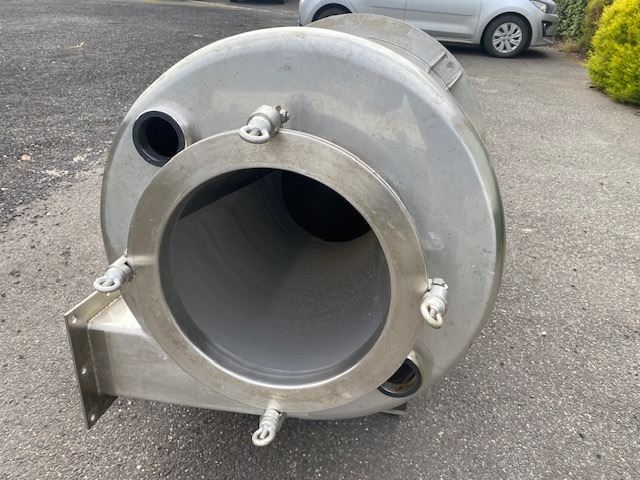

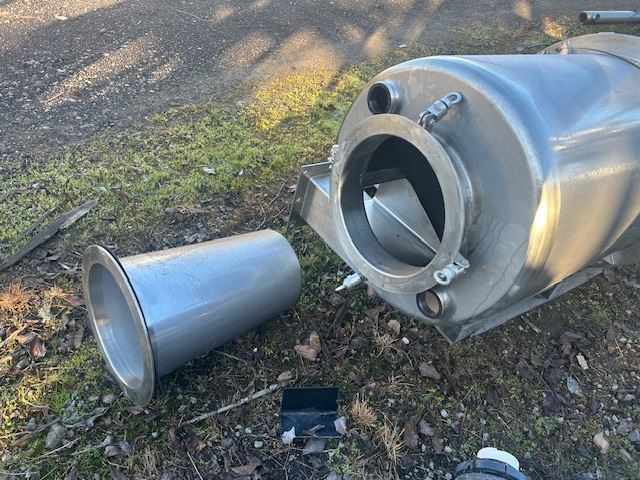

Clean Air outlet (at top) 380mm – The top flange with sleeve can be removed.

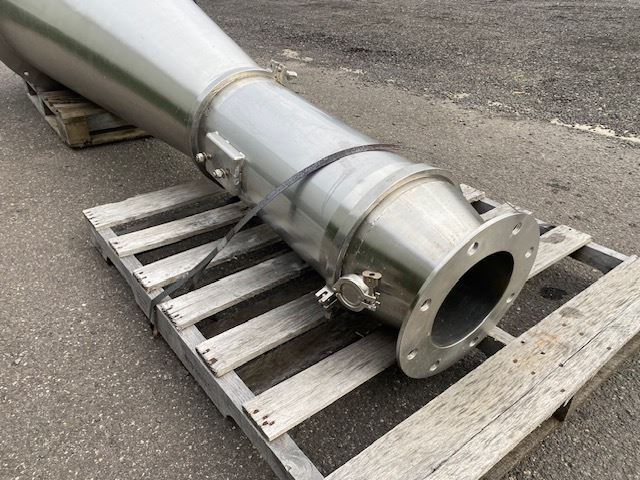

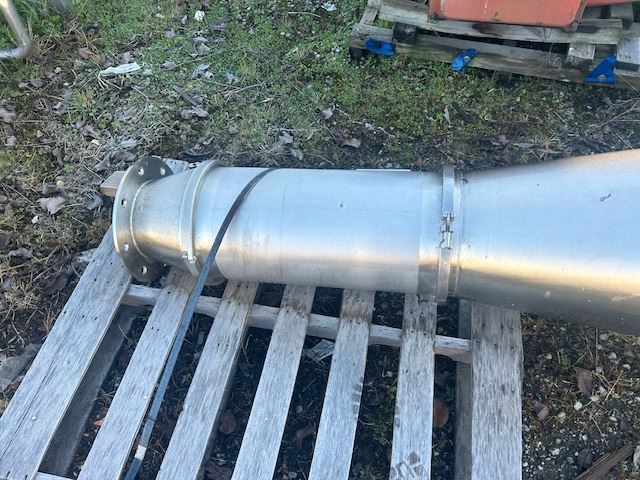

Bottom outlet 200mm – the two bottom flanges can be undone to remove bottom section.
Vibrating motor plate fitted to the outlet (no motor fitted)
Ex Food Factory application, located in our warehouse in Melbourne.
