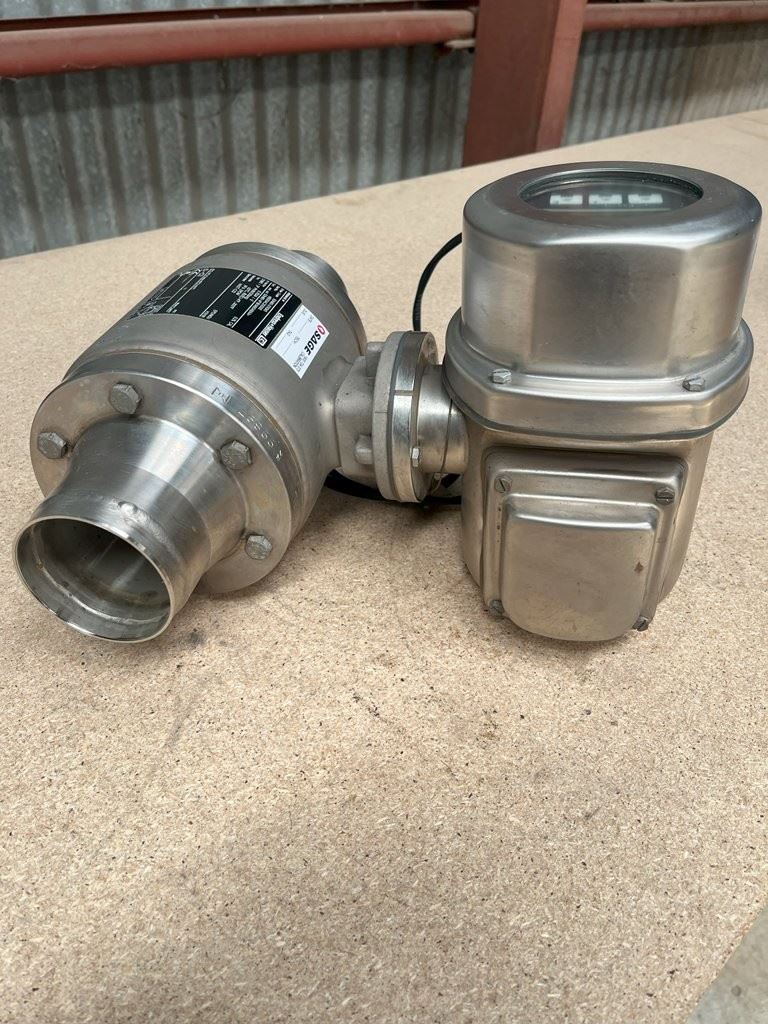

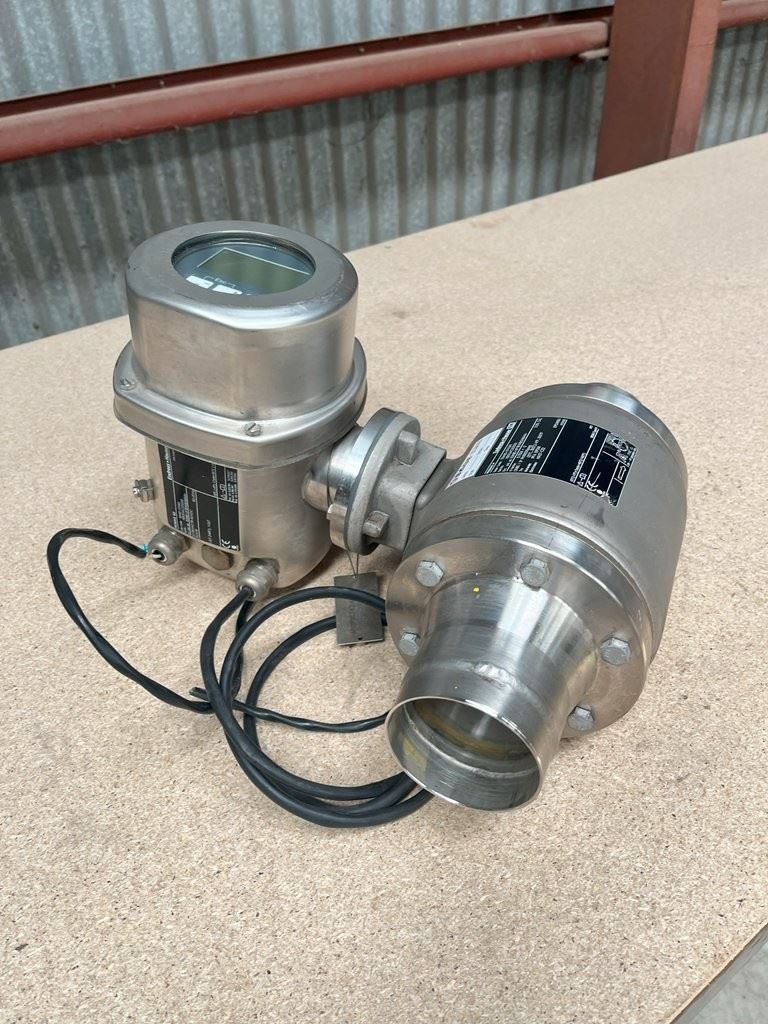

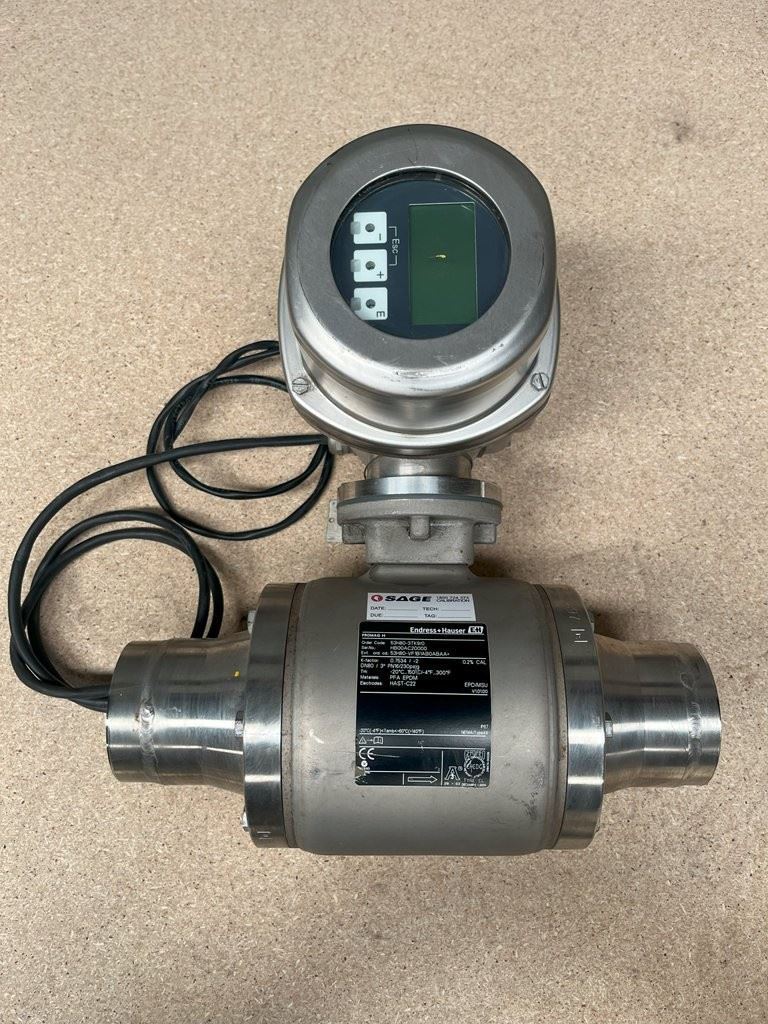

Promag 53 Flow Meter

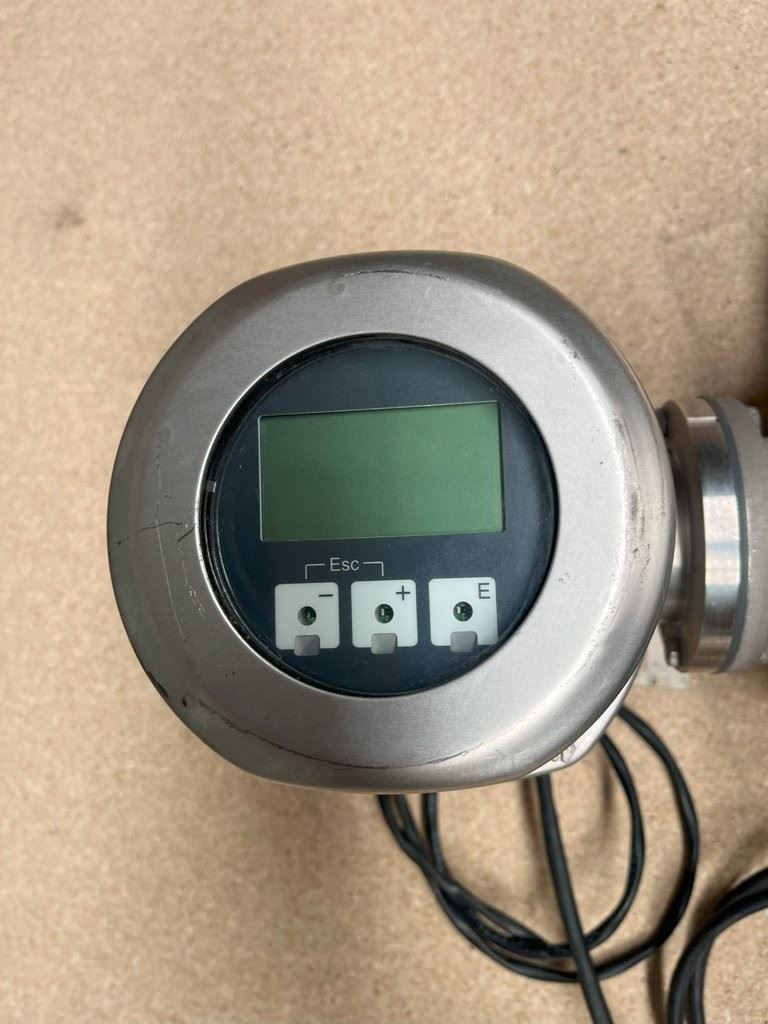

Promag H is the preferred sensor for applications with highest requirements in the food & beverage and life science industries. Combined with the Promag 53 transmitter with touch control, four line display and extended functionality like software options for filling and dosing, electrode cleaning or advanced diagnostics, Promag 53H offers highest accuracy in the most complex and demanding measuring tasks.

Benefits:

• Flexible installation concept numerous hygienic process connections
• Energy-saving flow measurement no pressure loss due to crosssection constriction
• Quality software for filling and dosing, density, electrode cleaning and also advanced diagnostics
• Easy calculation bidirectional totalizers
• Automatic recovery of data for servicing
• Maintenance-free no moving parts

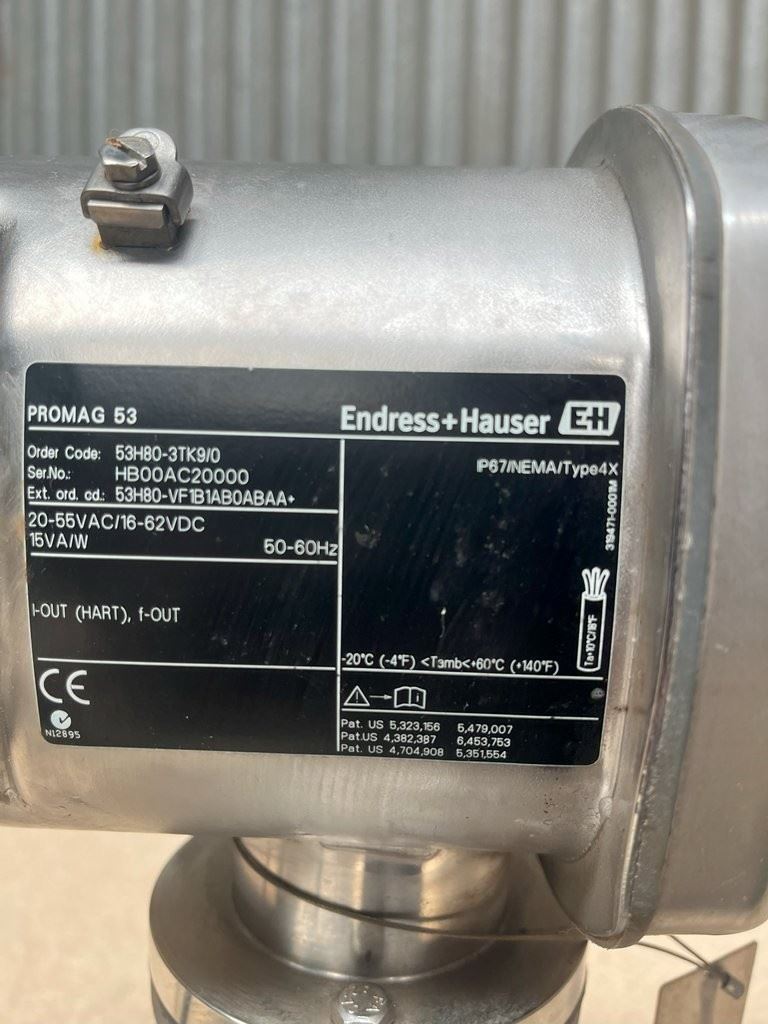

Make: Endress + Hauser

Model: Promag 53

Model Number: 53H80-3TK9/0

20-55 VAC / 16-22 VDC

15V A/W 50/60 Hz

I-OUT (HART), f-OUT

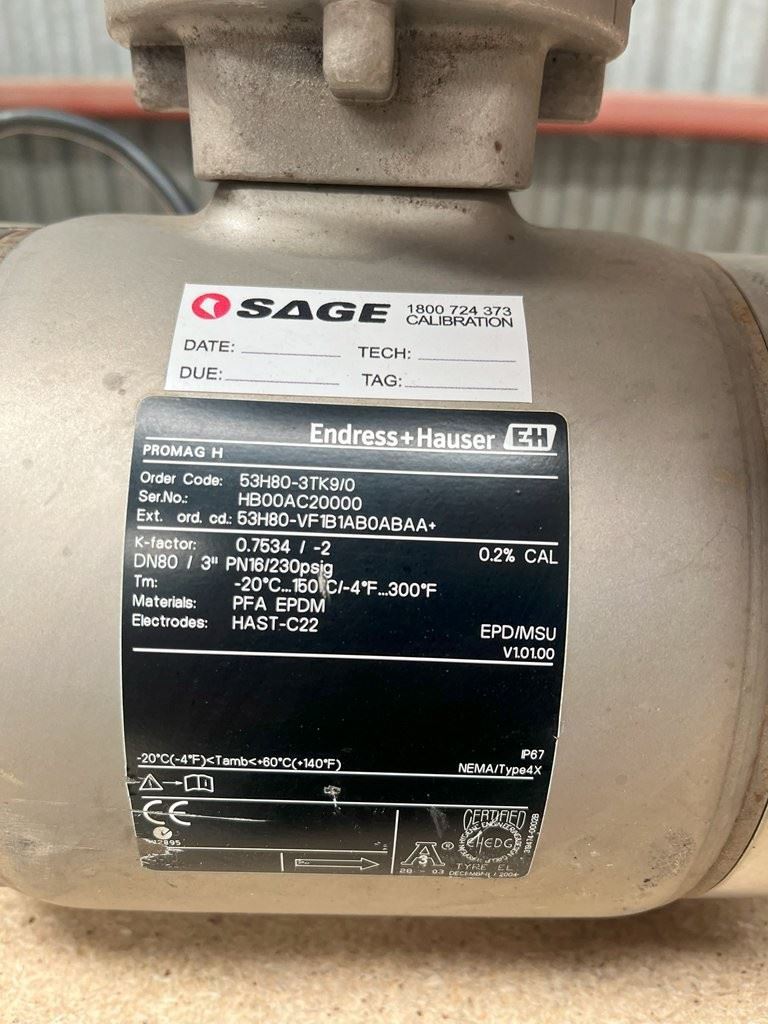

Promag H

K-factor: 0.7534 / -20.2%CAL

DN80 / 3 Inch PN16/230psig

Tm: -20 degrees C…150 degrees C

Materials: PFA EPDM

Electrodes: HAST-C22 EPD/MSU
