Mass Flow Meter

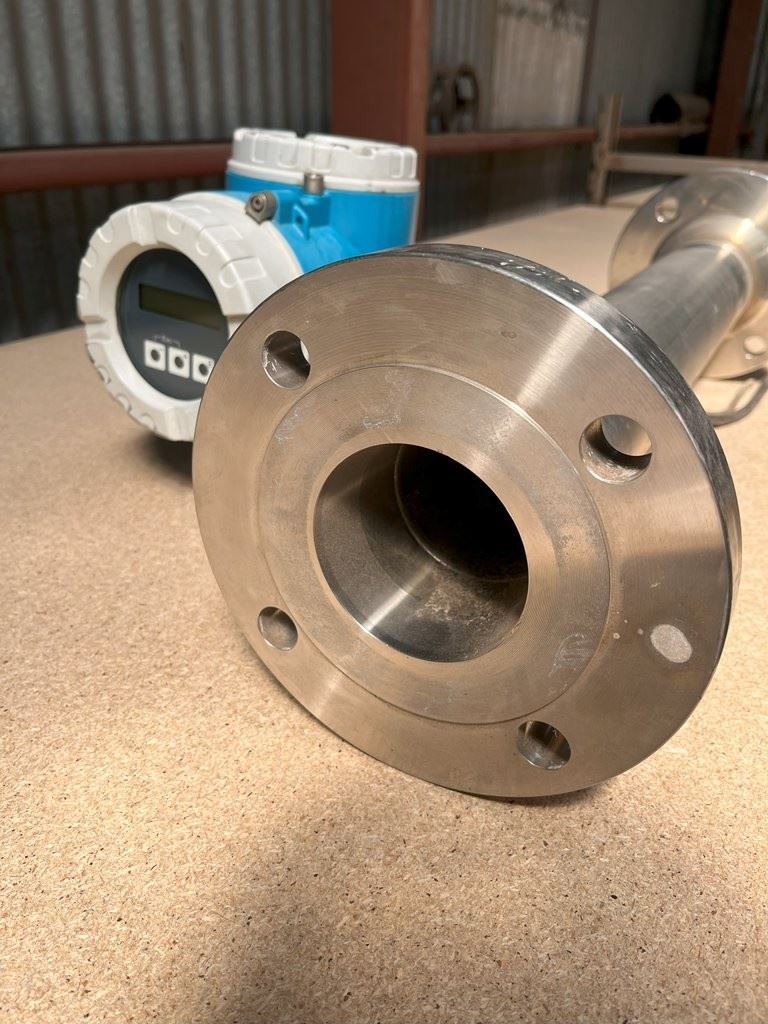

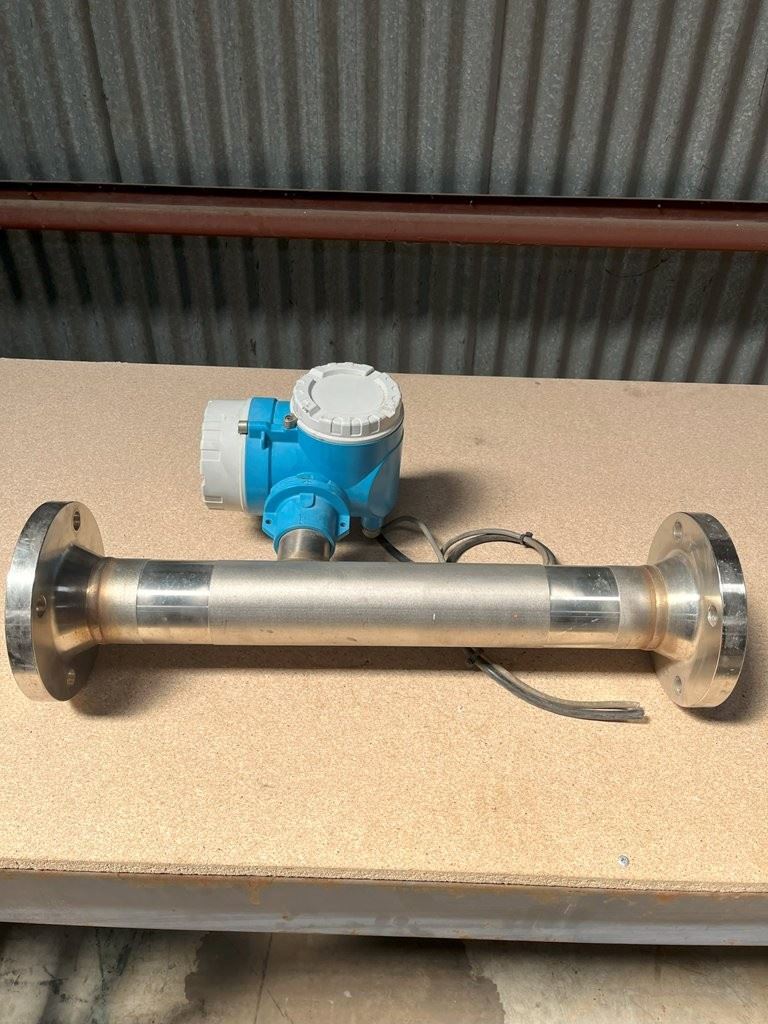

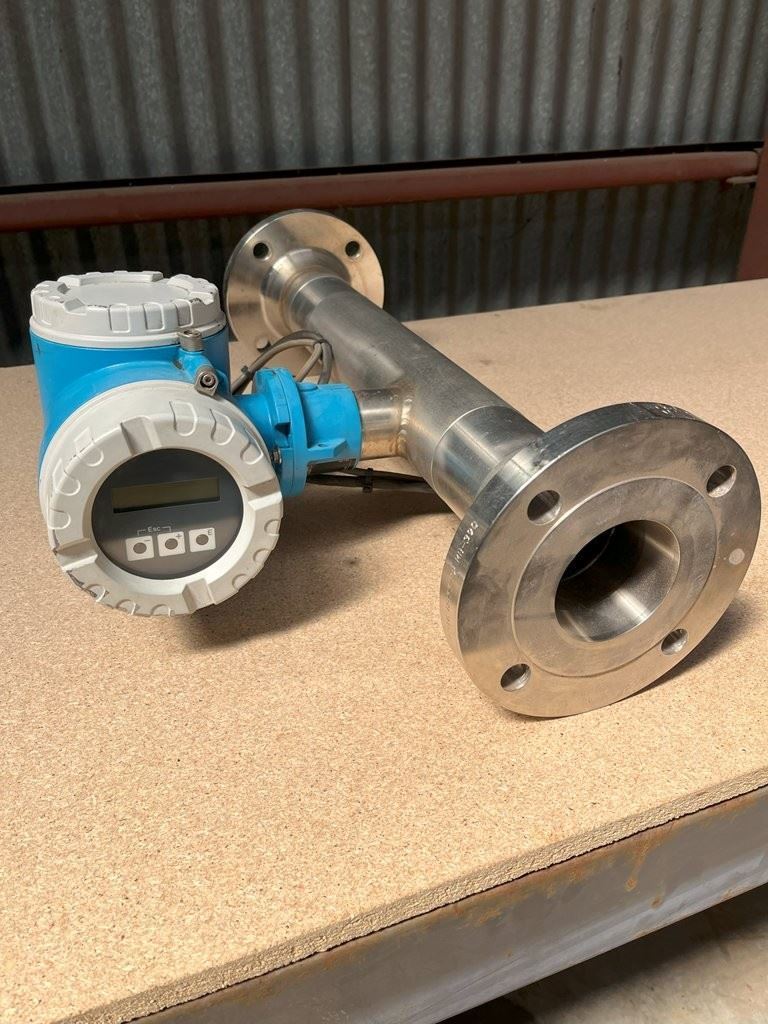

Endress + Hauser – Proline t-mass 65 – Mass Flow Meter.

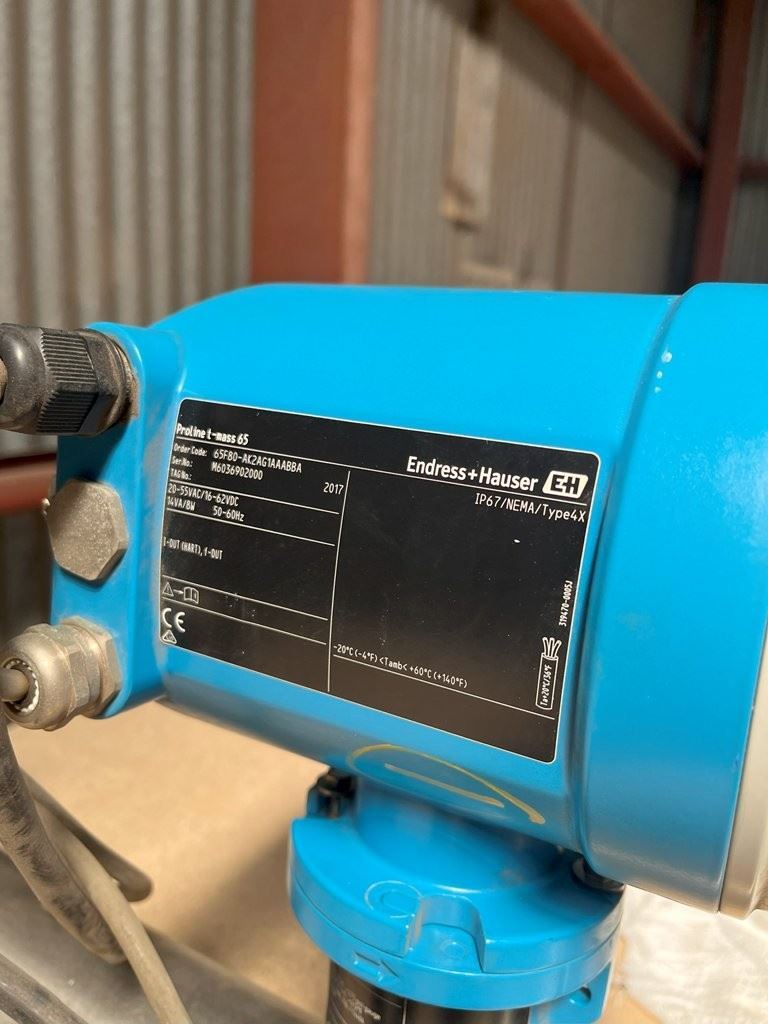

Model: 65F80-AK2AG1AAABBA

YOM: 2017

20-55V AC/16-62V DC

14VA/8W

50-60Hz

I-OUT (HART), f-OUT

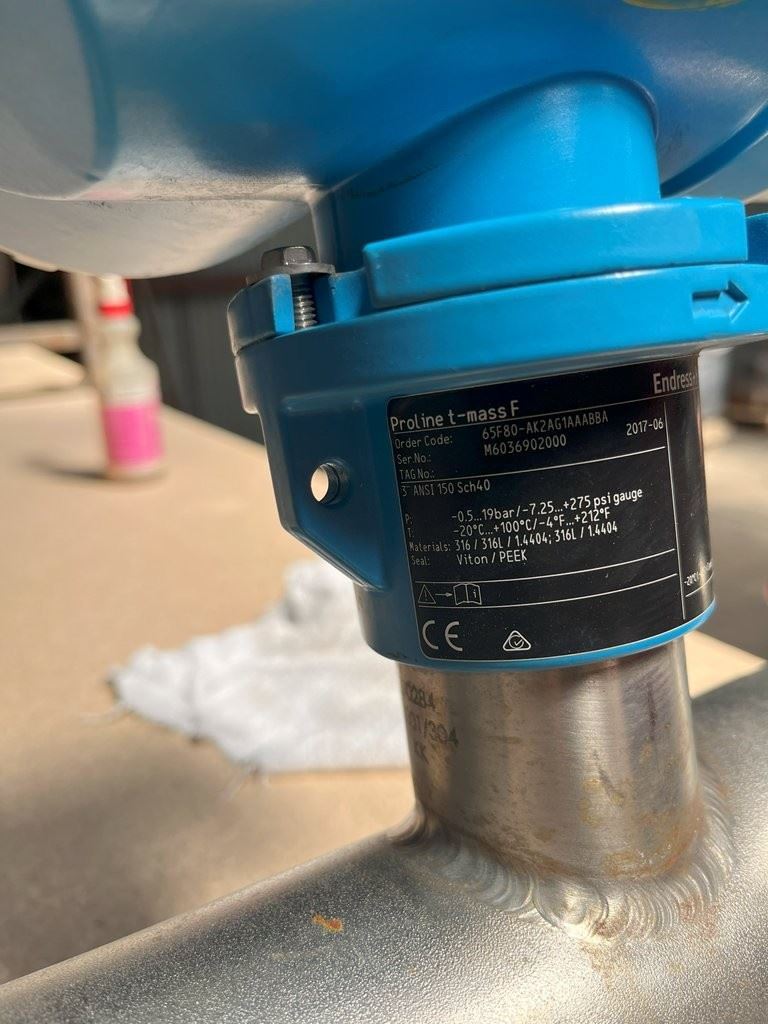

Proline t-mass F

3 ANSI 150 Sch40

P: -0.5…19BAR/ -7.25…275PSIG

T: -20 degrees C…+100 degrees C

Materials: 316, 316L, 1.4404

Seal: Viton / PEEK

Benefits:

• Measurement of gases and gas mixtures in small line sizes
• Plant safety – high accuracy and repeatability for a wide range of utility and process gases
• Cost-effective measurement – easy installation, negligible pressure loss and maintenance-free
• Reliable flow trending – multivariable measurement
• Fast and efficient commissioning – guided operating menus
• High plant availability – self-diagnostics and error monitoring
• Automatic recovery of data for servicing

Field of application: The t-mass 65F inline device is specially designed for the direct mass flow measurement of industrial gases and compressed air. With a turndown of typically 100:1 it can measure accurately operational flow rates and off line leakage. The integrated gas engine allows the customer to configure the device for 20 freely selectable gases.
