Kombucha Bottle filling line

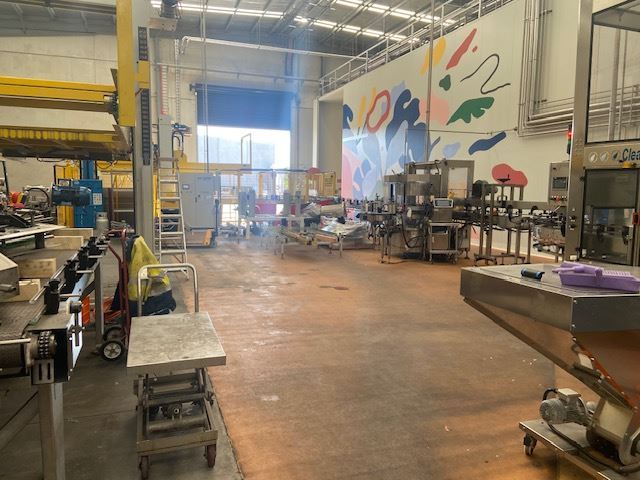

Kombucha Bottle filling Line for Glass and PET.

Year 2018

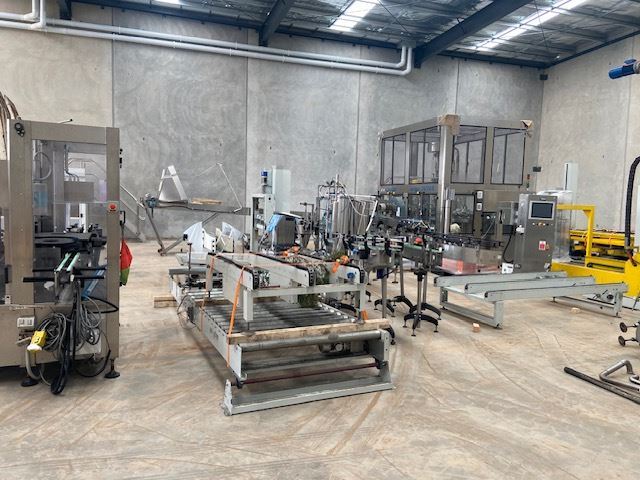

Complete Line for sale consisting of the main components below.

DE PALLETIZER:

AUTOMATIC DEPALLETIZER Mod. DPB-0051 designed to depalletize the following formats:

GLASS BOTTLES

• 330 ml
• 750 ml

PET BOTTLES

• 300 ml
• 700 ml

FILLER:

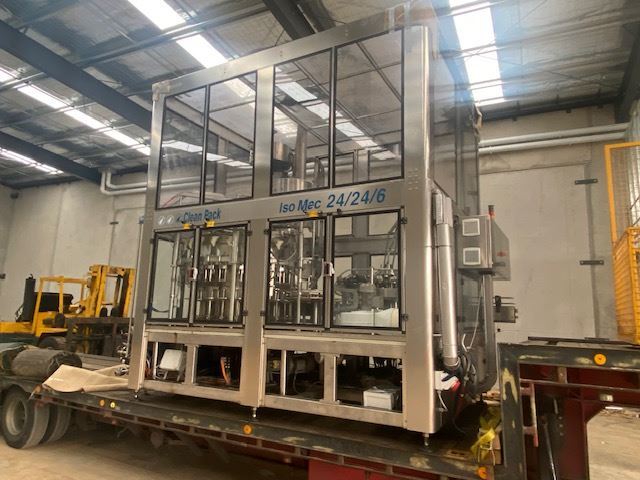

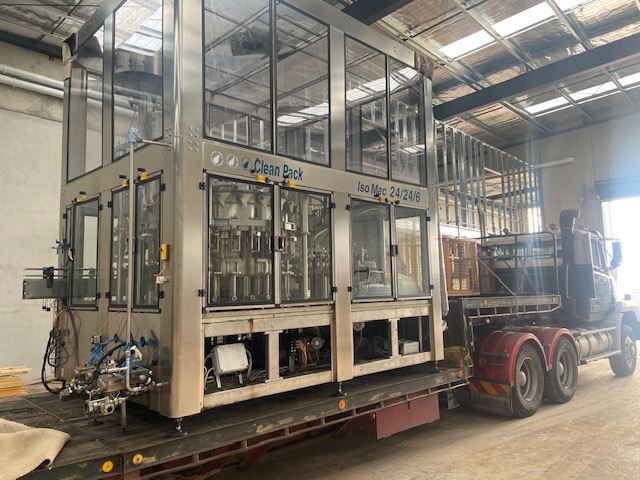

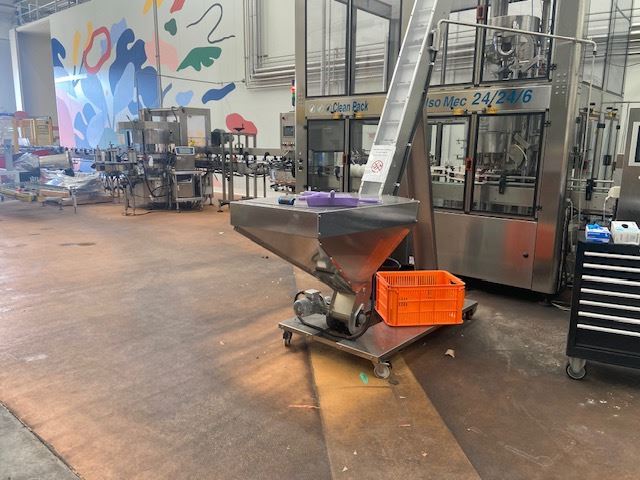

ISO MEC 24 / 24 / 6 AV – PF PP Bottle Filler.  Suitable to bottle KOMBUCHA into GLASS & PET BOTTLES by means of a THREE-BLOCK composed by a 24 head gripper rinsing turret, a 24 valve counter pressure filler and a 6 head capper pick and place which can do ROPP and PRE-THREADED CAPS. Aluminium cap and plastic cap.

Approx speeds below.

100 bpm (6.000 bph) by 300 & 330 ml
66 bpm (4.000 bph) by 700 & 750 ml

LABELLER:

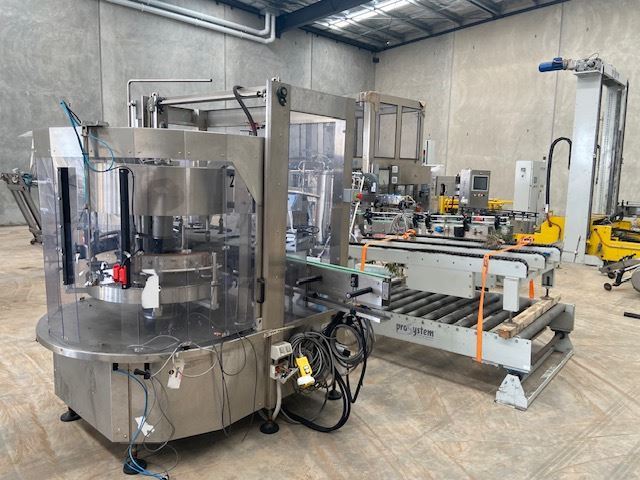

LABELMATIC R 6T AD S3 E2 it’s a ROTARY 6 HEADAS labelling machine suitable to apply
1 self-adhesive labels by 2 labelling stations. The machine is suitable to process cylindrical
and / or shaped bottles with application of WRAP-AROUND labels.

PALLETIZER:

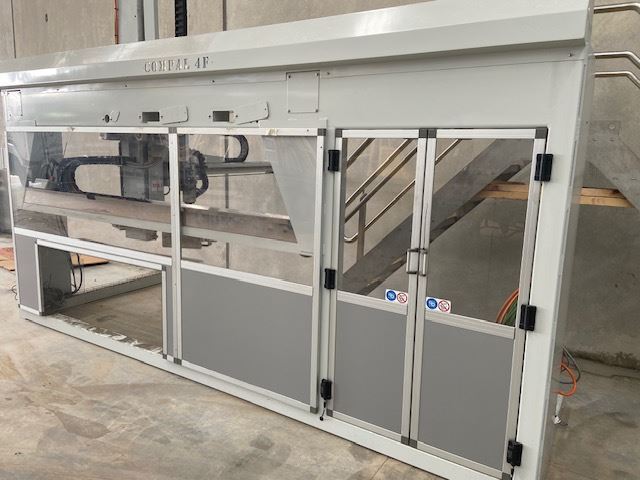

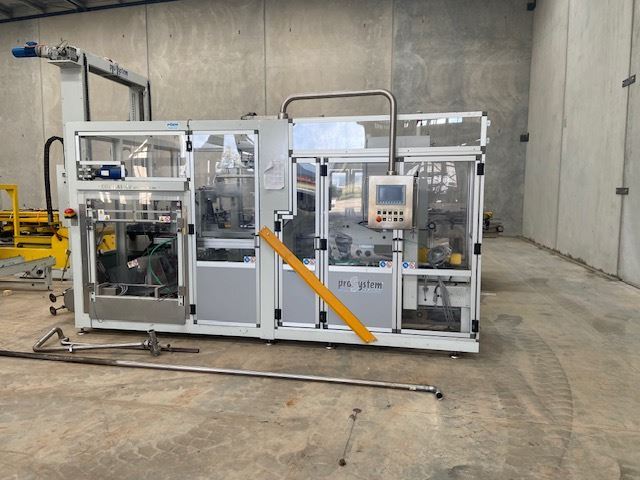

COMPAL-4F-NVE-006-MEC-NS is designed to form the carton, fill it and seal it with adhesive tape at the top-
bottom part and palletizing it, all in compact dimensions and spaces.
COMPAL incorporates all 4 phases of the packaging process, coordinating them by SIEMENS programmable
logic system

AUTOMATIC STRETCH WRAPPER Mod. ROTAFILM –PR1200

SATURATION SYSTEM – Clean Pack. Carbon dioxide saturation at 3000 Lt P hour

Volume   Material  Packing speed Bottle per carton
330 ml.  GLASS  60 bpm 6             (3×2)
330 ml.  GLASS  120 bpm 12         (3×4)
750 ml.  GLASS  60 bpm 6             (3×2)
750 ml.  GLASS  120 bpm 12          (3×4)
300 ml.  PET  60 bpm 6                  (3×2)
300 ml.  PET 120 bpm 12               (3×4)
700 ml.  PET  60 bpm 6                  (3×2)
700 ml.  PET  120 bpm 12              (3×4)

Located in Victoria.
