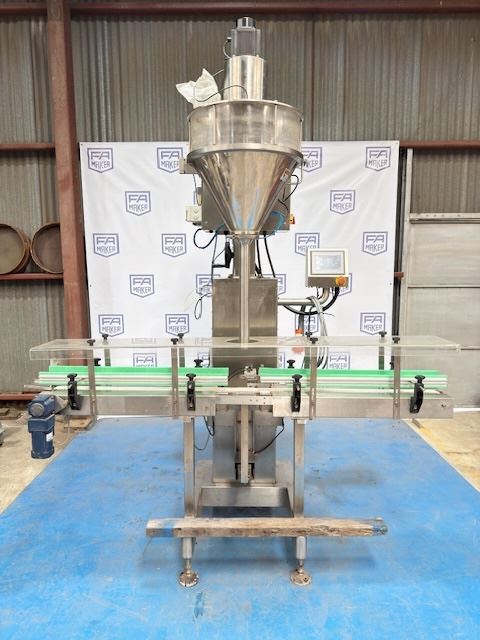

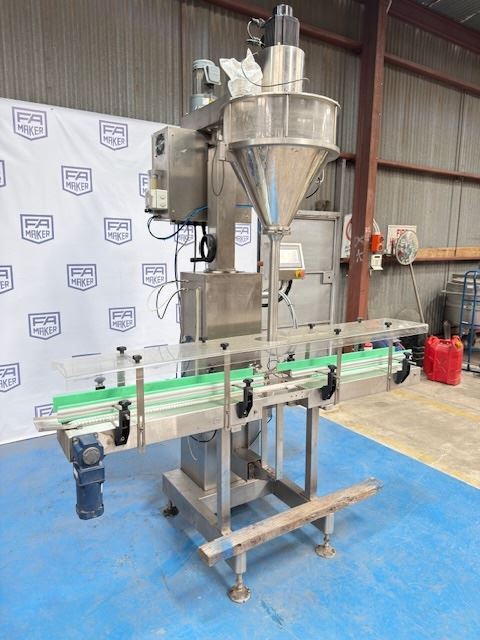

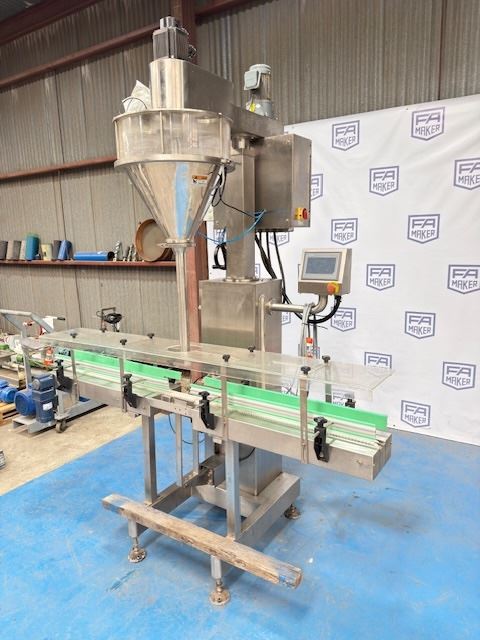

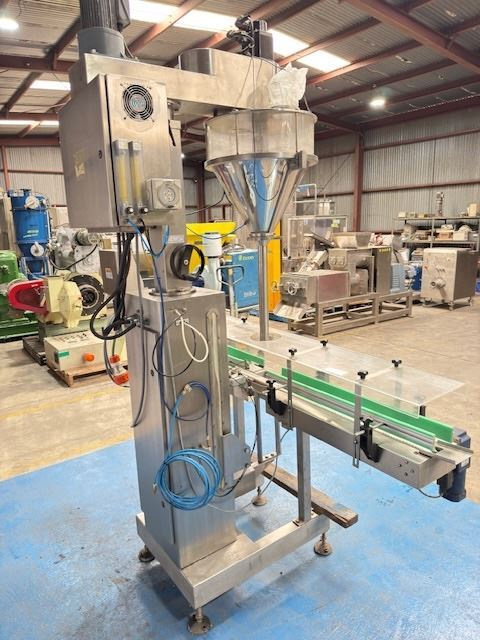

Designed specifically for fine powders and materials prone to dust, this intelligent filling system delivers exceptional precision and consistency for every batch. Ideal for industries requiring high-accuracy packaging, it efficiently handles both powder and granular products with minimal waste and maximum productivity.
Exceptional Weighing Accuracy
Equipped with a high-speed load cell platform, the system performs dual-speed filling based on preset weights—ensuring fast throughput with precise measurement accuracy every time.
Clean, Dust-Free Filling

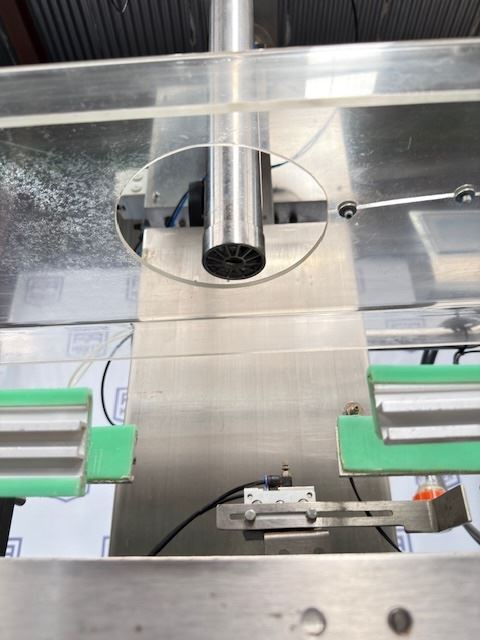

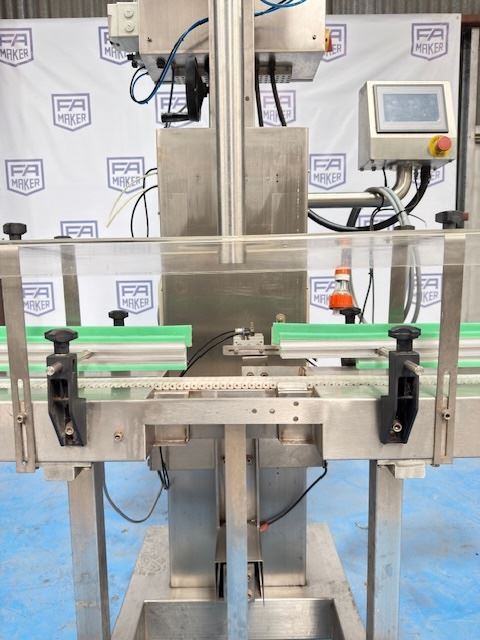

The servo-driven lifting tray raises and lowers containers smoothly, minimizing dust dispersion and keeping your workspace clean.
Reliable Servo Control
A high-performance servo motor and drive control the auger with remarkable stability and repeatability, maintaining accuracy even during extended operation.
Smart, User-Friendly Control System

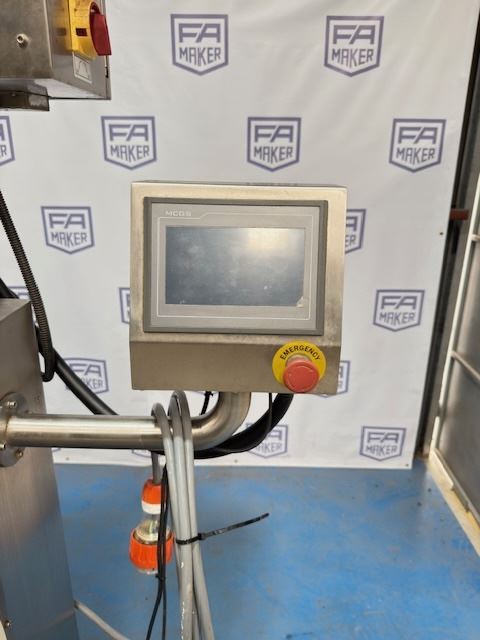

Advanced PLC control with a touchscreen interface makes operation simple, intuitive, and efficient. Operators can easily adjust parameters or switch filling modes.
Hygienic, Easy-to-Clean Design
Made from durable stainless steel, the combined or split hopper design allows effortless cleaning and maintenance—perfect for food, pharmaceutical, and chemical applications.
Quick Adjustment for Versatility
A handwheel height adjustment enables the system to fill containers of different sizes and capacities with ease.
Consistent Product Quality

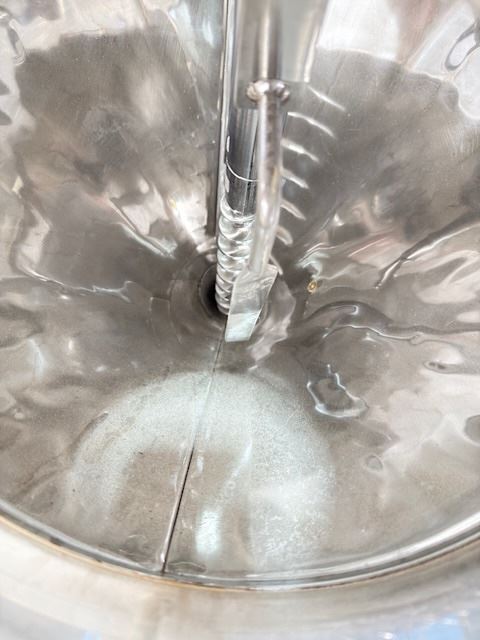

The fixed screw installation design ensures smooth material flow and stable product quality throughout the process.
Flexible Filling Options
Fill by Volume – For high-speed applications with standard accuracy
Fill by Weight – For precision packaging where accuracy is paramount

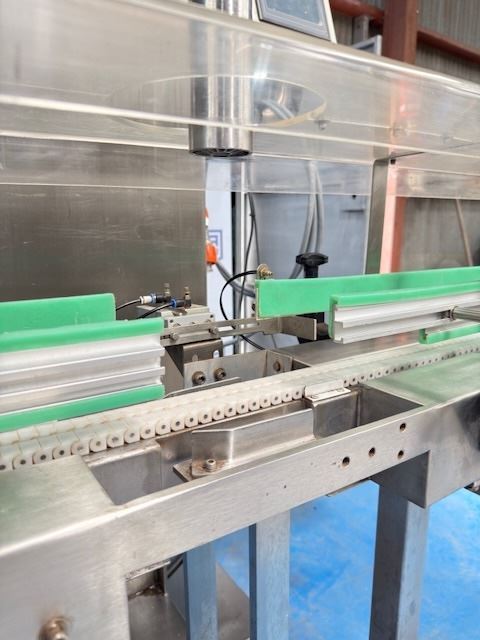

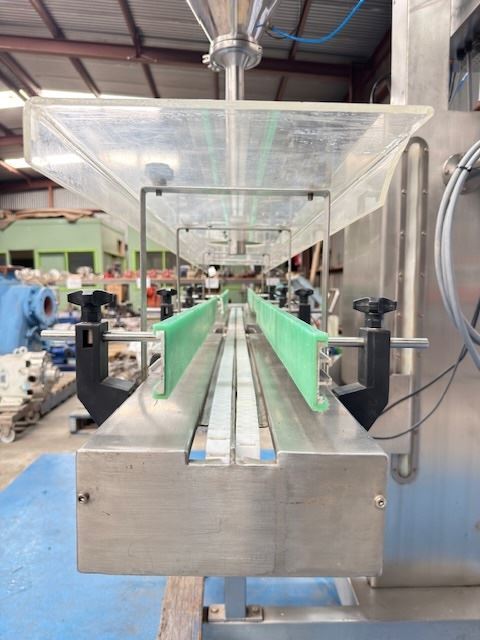

Container enters the system
Container lifts into filling position
Fast fill begins
Container lowers gradually
System detects preset weight
Slow fill for fine adjustment
Target weight achieved
Filled container exits
This intelligent sequence ensures smooth, accurate, and repeatable filling cycles—reducing waste and improving production efficiency.
| Parameter | Specification |
|---|---|
| Dosing Mode | Online weighing with container lift-and-fall function |
| Filling Range | 100 g – 10 kg |
| Accuracy | 100–1000 g: ≤±2 g; >1000 g: ≤±0.2% |
| Speed | 5 – 12 bottles per minute |
| Power Supply | 3-Phase AC 208–415V, 50/60Hz |
| Air Supply | 6 kg/cm², 0.05 m³/min |
| Total Power | 3.2 kW |
| Machine Weight | 450 kg |
| Dimensions (L×W×H) | 2000 × 970 × 2300 mm |
| Hopper Volume | 70 L |
Food powders (milk, coffee, spices, flour, etc.)
Chemical powders and granules
Pharmaceutical and nutraceutical products
Additives and industrial materials
Located in our Melbourne warehouse.
