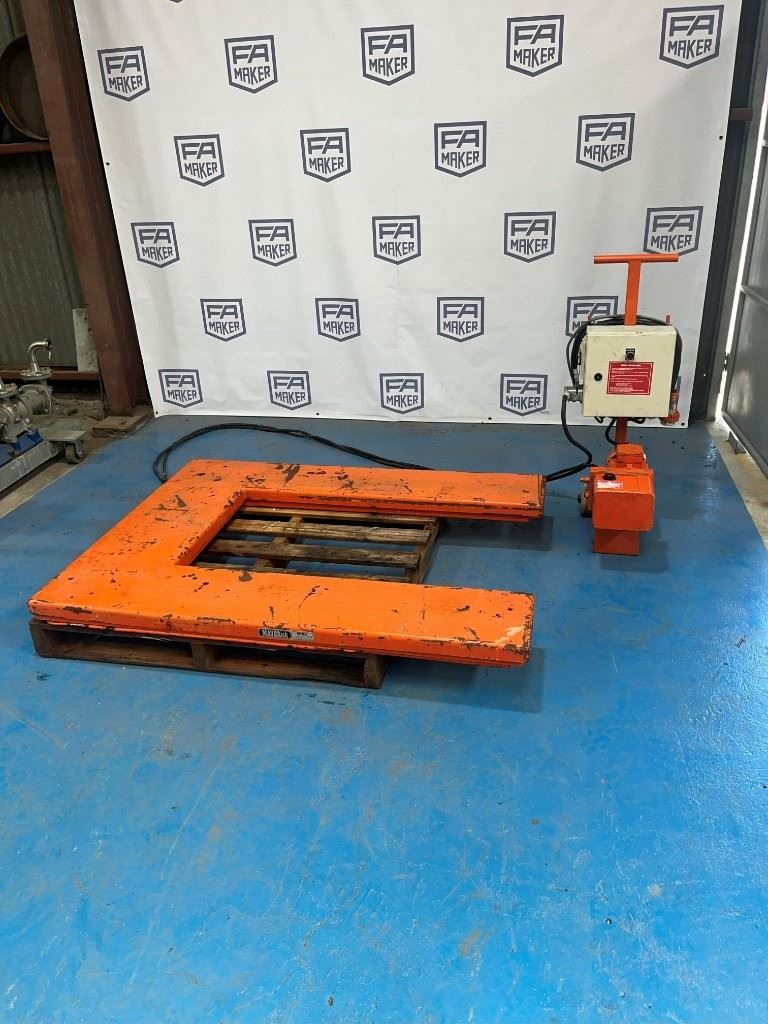

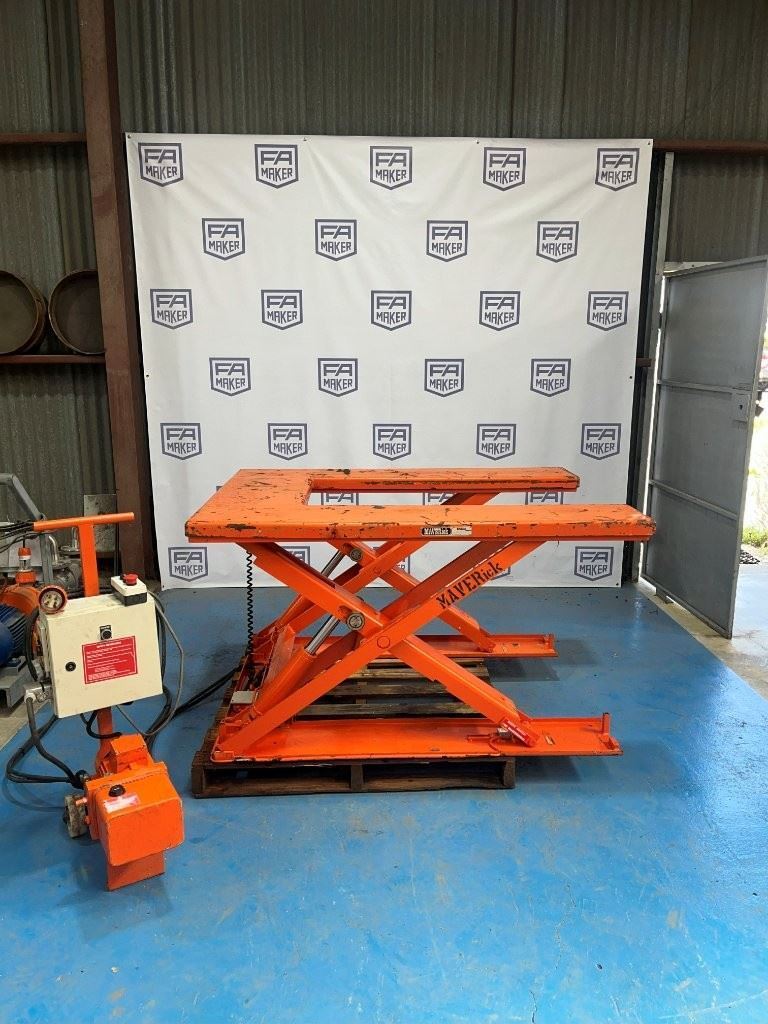

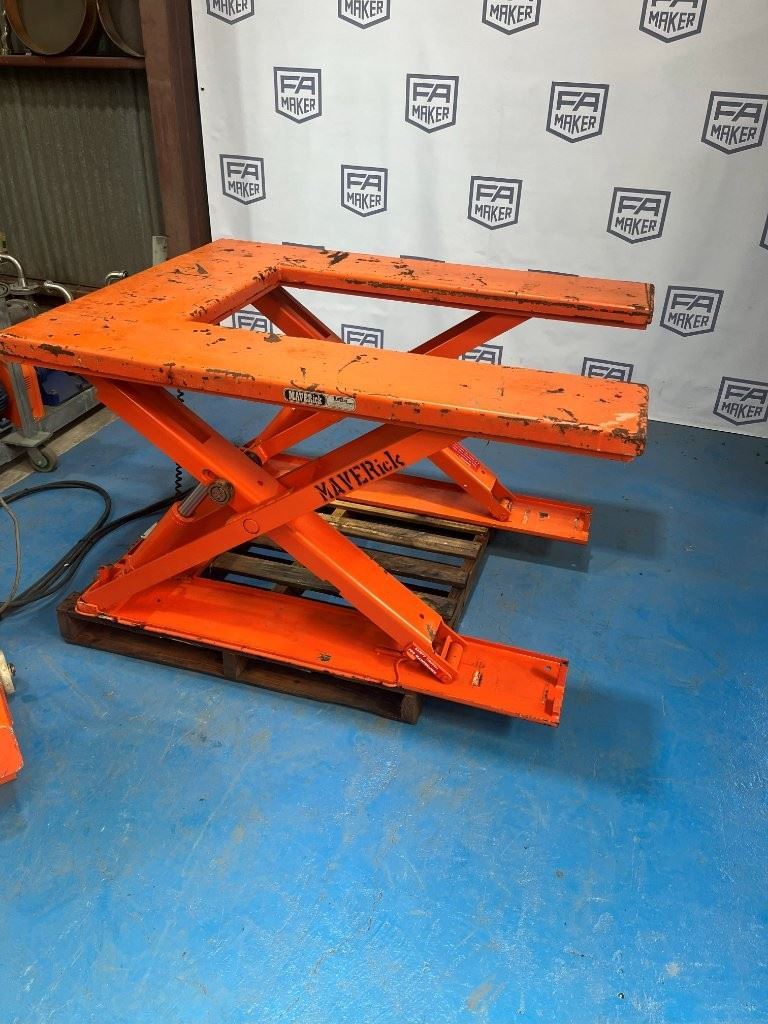

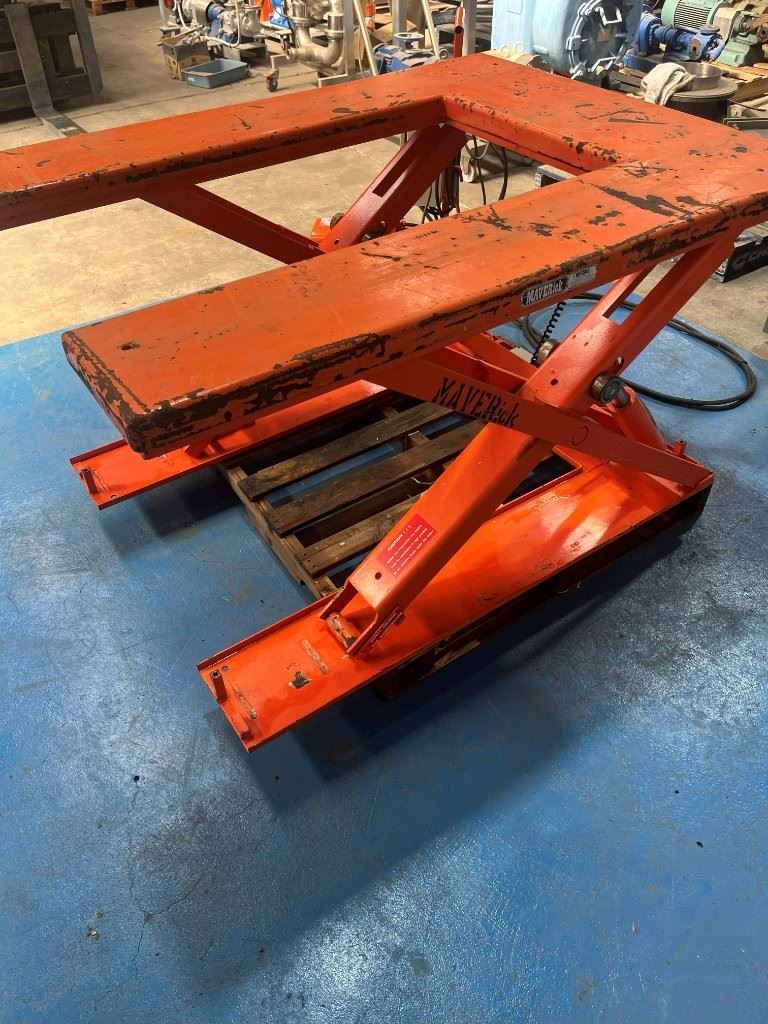

1 Tonne – U Shape Electric Lift Table

The U shape lift table are designed in a unique ‘U’ shape for the seamless handling of pallets and mesh boxes.This particular lift table is for use in the assembly line and production lines.

The U shaped static lift table also includes specific design features that prioritise your safety, the safety of others and of your product. These include safety cut off bars on all sides, a safety cut off valve in the event of power failure and overload protection.

• This “U” shaped lift platform is ideal for lifting pallets or cages to safe working height and suitable for use as a feeding table on an assembly line.
• High-quality heavy-duty steel construction with powder coated paint finish.

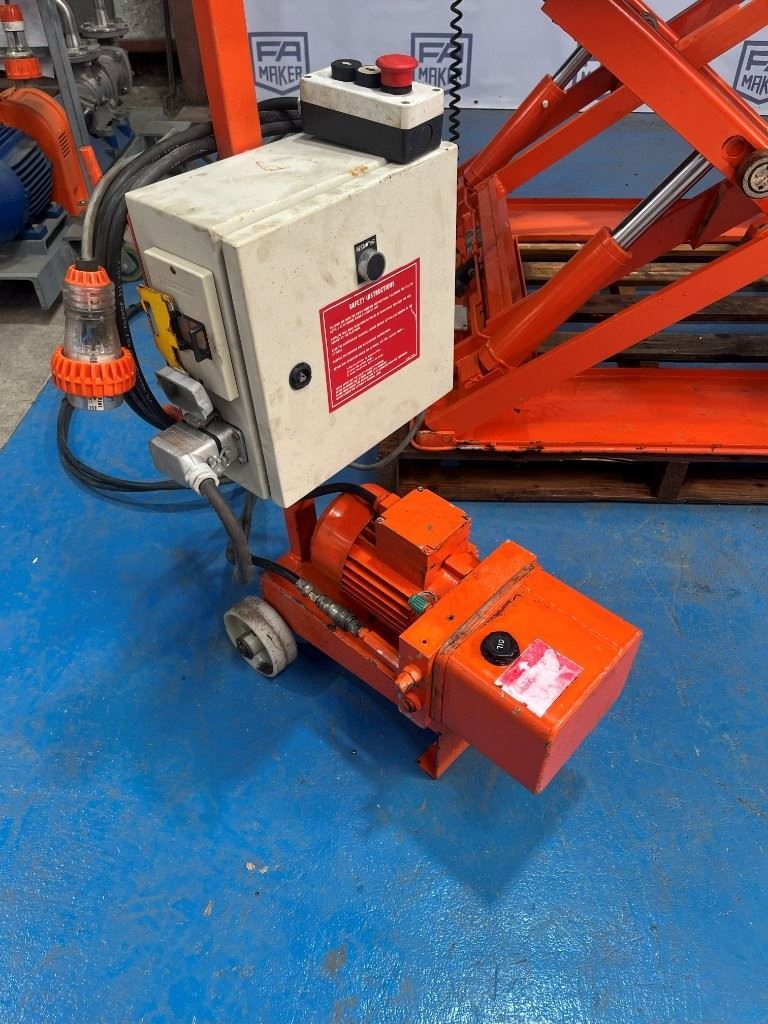

• Supplied with remote power system and control unit with UP, DOWN, and EMERGENCY STOP controls.

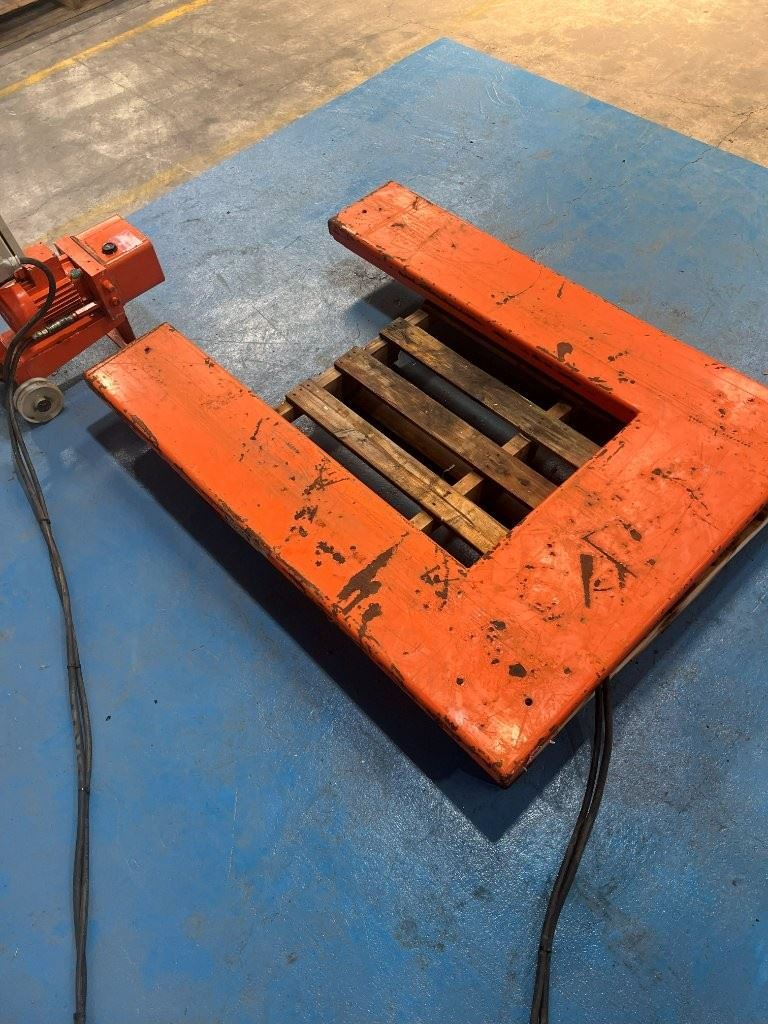

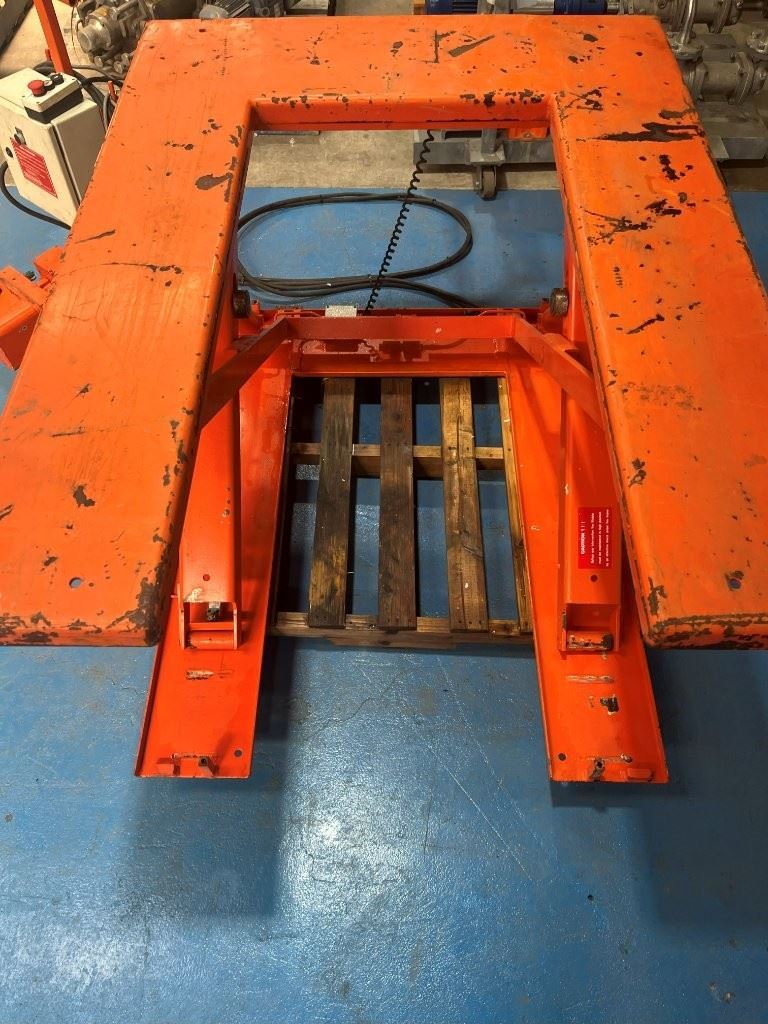

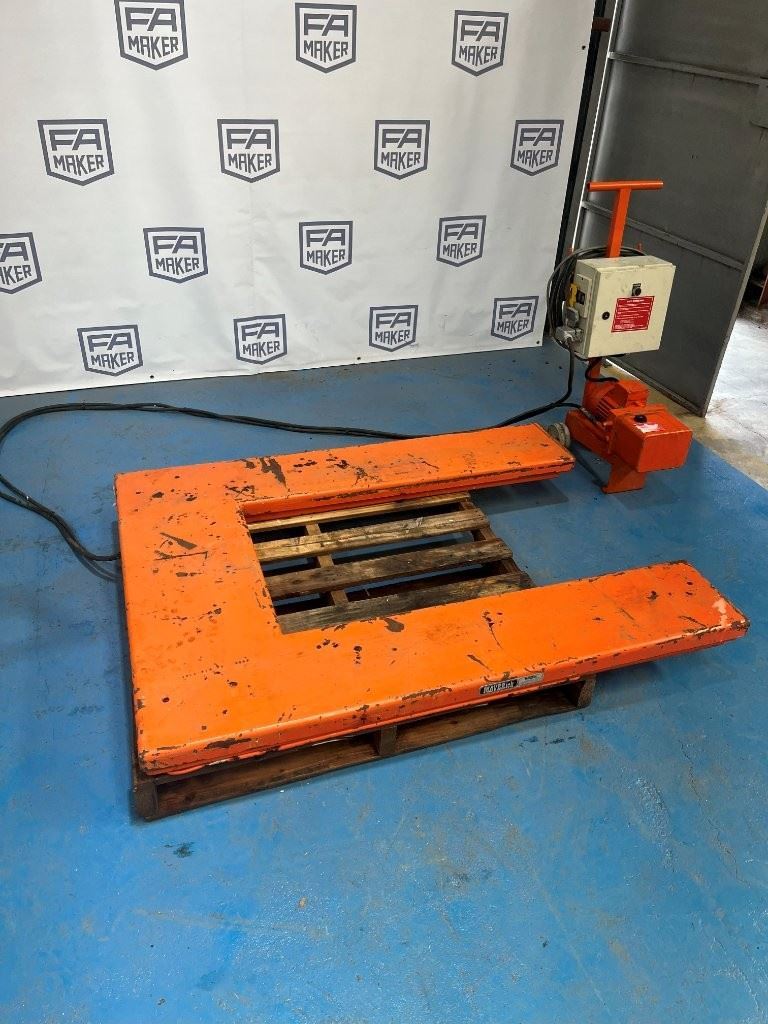

• The ‘U’ shape allows a pallet truck to position the pallet/cage onto the lift platform.

Data Sheet:

Capacity: 1000kg

Min-Max Height: 85-850mm

Table Size: 1500 x 1150mm

Table inner U Size: 1160 x 590mm

Lifting to Top Time: 20s

3 Phase, 415V with a 0.75kW motor.

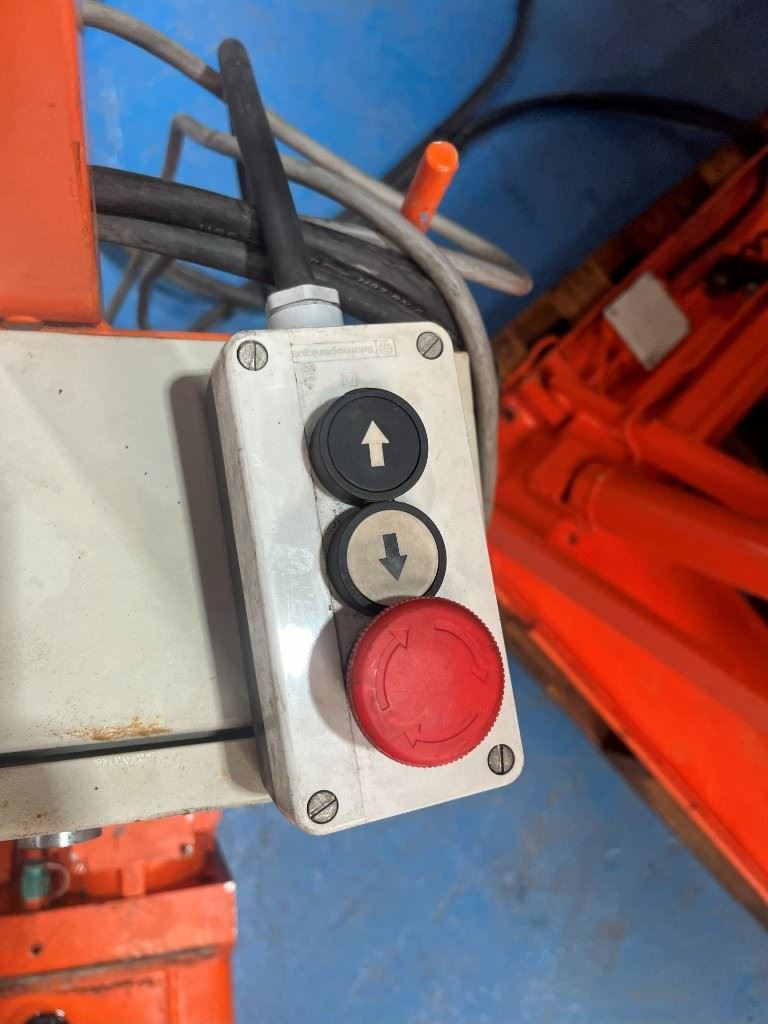

Comes with a pendant remote with UP/DOWN/E-Stop.

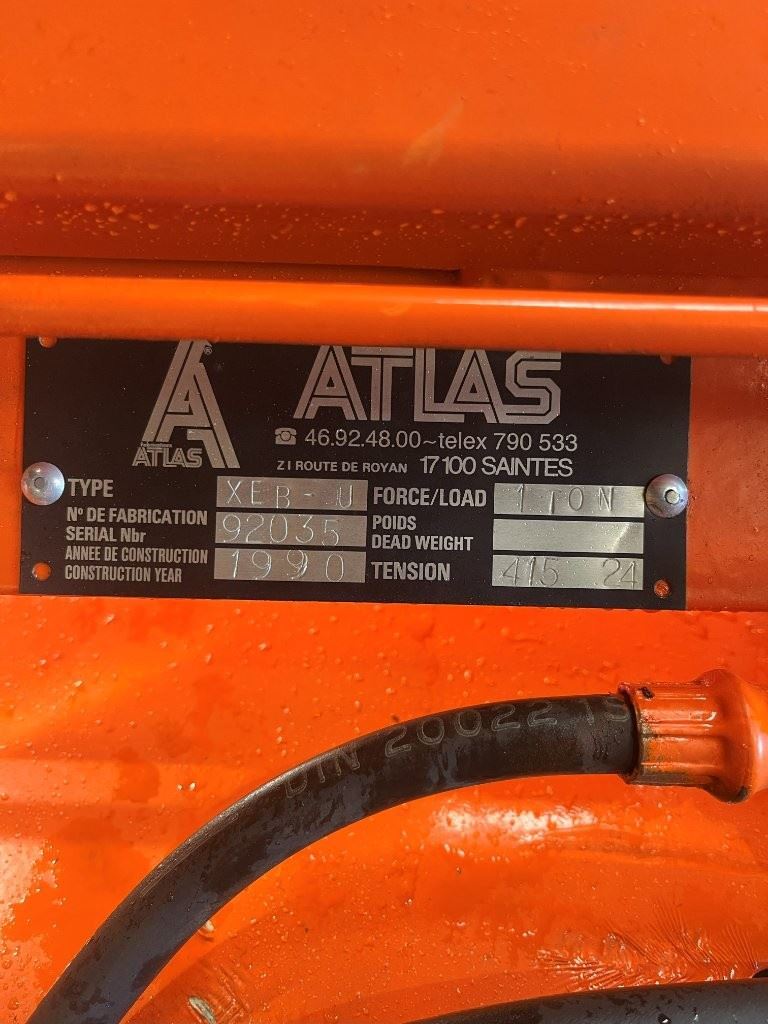

Unit made in France.

Unit runs well.
